F77減速機重量：F77減速機重量90公斤，F(xiàn)77減速機配電機重量分別如下

F77減速機配0.37KW電機重量100.5公斤，F(xiàn)77減速機配0.55KW電機重量105公斤，F(xiàn)77減速機配0.75KW電機重量106公斤，F(xiàn)77減速機配1.1KW電機重量110公斤，F(xiàn)77減速機配1.5KW電機重量113公斤，F(xiàn)77減速機配2.2KW電機重量122公斤，F(xiàn)77減速機配3KW電機重量125公斤，F(xiàn)77減速機配4KW電機重量136公斤，F(xiàn)77減速機配5.5KW電機重量150公斤，F(xiàn)77減速機配7.5KW電機重量163公斤，F(xiàn)77減速機配11KW電機重量205公斤。

F77減速機加油量：可加礦物油

F77減速機M1安裝加5.9升，F(xiàn)77減速機M2安裝加7.3升，F(xiàn)77減速機M3安裝加4.3升，F(xiàn)77減速機M4安裝加8升，F(xiàn)77減速機M5安裝加6升，F(xiàn)77減速機M6安裝加6.3升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

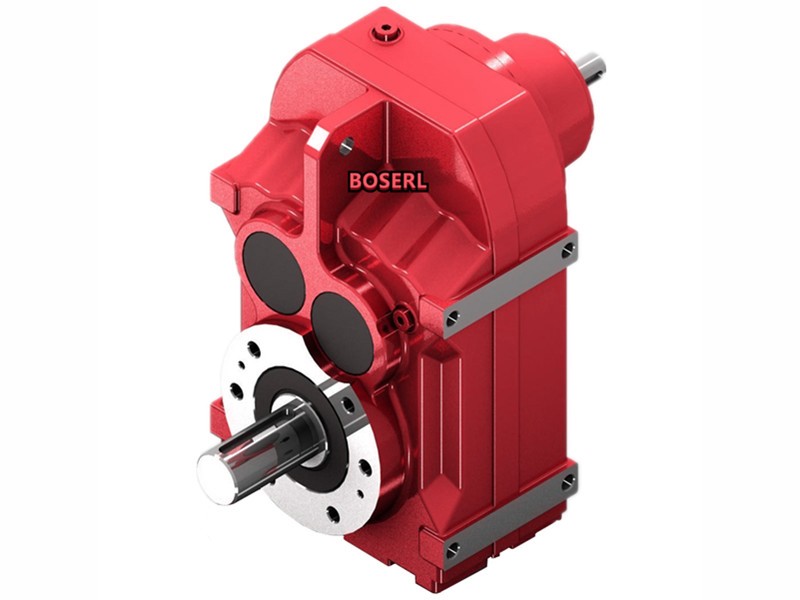

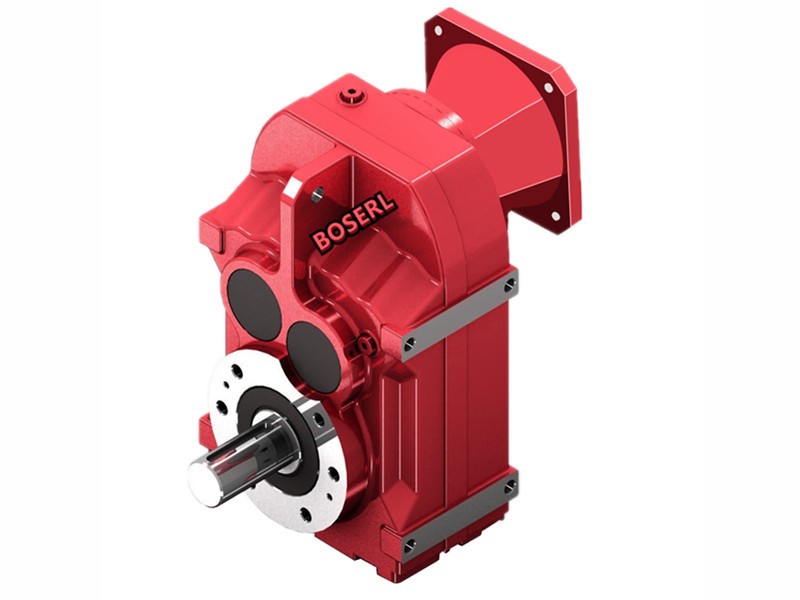

F77減速機實物圖：圖一為F77底腳安裝軸輸出平行軸減速機，圖二FF77立式法蘭軸輸出平行軸斜齒輪減速機，圖三為FA77臥式孔輸出平行軸減速機，圖四為FAF77立式法蘭孔輸出平行軸斜齒輪減速機。

F77減速機型號表示方法：

F77減速機型號結構F77-B7.5KW-4P-減速比-安裝方式-接線盒位置。

F77減速機性能參數表結構說明：F77、FF77、FA77、FAF77減速機機座號，HF手動釋放裝置帶自鎖功能，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。齒輪減速機

F77減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

F77減速機結構圖：

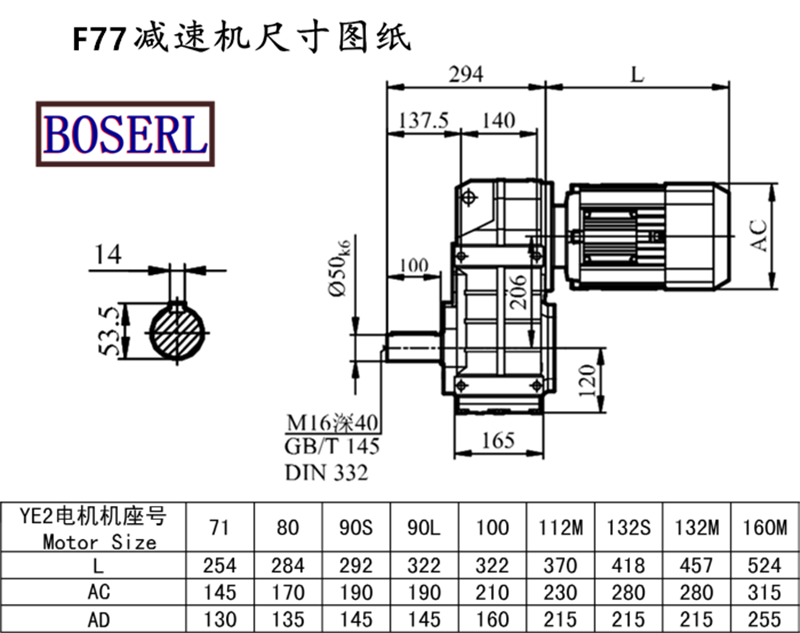

F77減速機尺寸圖紙：高431*寬270*長294（帶輸出軸）F系列減速機

F77減速機參數：

F77減速機電機可配直流/變頻/剎車/防爆/伺服/交流/三相/單相電機F77配0.12KW，F(xiàn)77配0.18KW，F(xiàn)77配0.25KW，F(xiàn)77配0.37KW，F(xiàn)77配0.55KW，F(xiàn)77配0.75KW，F(xiàn)77配1.1KW，F(xiàn)77配1.5KW，F(xiàn)77配2.2KW，F(xiàn)77配3KW，F(xiàn)77配4KW，F(xiàn)77配5.5KW，F(xiàn)77配7.5KW，F(xiàn)77配11KW。

F77減速機減速比1:281，1:262，1:225，1:198，1:188，1:166，1:142，1:130，1:114，1:108，1:94，1:85，1:75，1:72，1:66，1:58，1:55，1:48，1:43，1:38，1:33，1:30，1:25，1:36，1:31，1:28，1:25，1:21，1:19，1:17，1:15，1:14，1:12，1:10，1:9，1:8，1:7，1:6，1:5，1:4。

F77減速機輸出轉數5轉，6轉，7轉，8轉，9轉，11轉，12轉，13轉，15轉，16轉，19轉，21轉，24轉，25轉，29轉，32轉，37轉，41轉，47轉，55轉，38轉，44轉，49轉，55轉，65轉，71轉，80轉，90轉，100轉，115轉，128轉，151轉，169轉，189轉，211轉，243轉，271轉，327轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

F77減速機輸出扭矩1500N.m，1450N.m，1110N.m，1380N.m，1430N.m，1080N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

F77減速機型號：F77AQA80,F77AQA100,F77AQA115,F77AQA140,F77AQA160,F77AQA190,F77AQH80,F77AQH100,F77AQH115,F77AQH140,F77AQH160,F77AQH190,JRTF77-Y0.18KW,JRTF77-Y0.25KW,JRTF77-Y0.37KW,JRTF77-Y0.55KW,JRTF77-Y0.75KW,JRTF77-Y1.1KW,JRTF77-Y1.5KW,JRTF77-Y100M4,JRTF77-Y112M4,JRTF77-Y11KW,JRTF77-Y132M4,JRTF77-Y160M4,JRTF77-Y2.2KW,JRTF77-Y3KW,JRTF77-Y4KW,JRTF77-Y5.5KW,JRTF77-Y63M4,JRTF77-Y7.5KW,JRTF77-Y71M4,JRTF77-Y80M4,JRTF77-Y90M4,JRTF77-YEJ100M4,JRTF77-YEJ112M4,JRTF77-YEJ132M4,JRTF77-YEJ160M4,JRTF77-YEJ63M4,JRTF77-YEJ71M4,JRTF77-YEJ80M4,JRTF77-YEJ90M4,JRTF77-YS100M4,JRTF77-YS112M4,JRTF77-YS132M4,JRTF77-YS160M4,JRTF77-YS63M4,JRTF77-YS71M4,JRTF77-YS80M4,JRTF77-YS90M4,JRTF77-YVP100M4,JRTF77-YVP112M4,JRTF77-YVP132M4,JRTF77-YVP160M4,JRTF77-YVP63M4,JRTF77-YVP71M4,JRTF77-YVP80M4,JRTF77-YVP90M4,JRTF77-YVPEJ100M4,JRTF77-YVPEJ112M4,JRTF77-YVPEJ132M4,JRTF77-YVPEJ160M4,JRTF77-YVPEJ63M4,JRTF77-YVPEJ71M4,JRTF77-YVPEJ80M4,JRTF77-YVPEJ90M4,EWF77-Y0.18KW,EWF77-Y0.25KW,EWF77-Y0.37KW,EWF77-Y0.55KW,EWF77-Y0.75KW,EWF77-Y1.1KW,EWF77-Y1.5KW,EWF77-Y100M4,EWF77-Y112M4,EWF77-Y11KW,EWF77-Y132M4,EWF77-Y160M4,EWF77-Y2.2KW,EWF77-Y3KW,EWF77-Y4KW,EWF77-Y5.5KW,EWF77-Y63M4,EWF77-Y7.5KW,EWF77-Y71M4,EWF77-Y80M4,EWF77-Y90M4,EWF77-YEJ100M4,EWF77-YEJ112M4,EWF77-YEJ132M4,EWF77-YEJ160M4,EWF77-YEJ63M4,EWF77-YEJ71M4,EWF77-YEJ80M4,EWF77-YEJ90M4,EWF77-YS100M4,EWF77-YS112M4,EWF77-YS132M4,EWF77-YS160M4,EWF77-YS63M4,EWF77-YS71M4,EWF77-YS80M4,EWF77-YS90M4,EWF77-YVP100M4,EWF77-YVP112M4,EWF77-YVP132M4,EWF77-YVP160M4,EWF77-YVP63M4,EWF77-YVP71M4,EWF77-YVP80M4,EWF77-YVP90M4,EWF77-YVPEJ100M4,EWF77-YVPEJ112M4,EWF77-YVPEJ132M4,EWF77-YVPEJ160M4,EWF77-YVPEJ63M4,EWF77-YVPEJ71M4,EWF77-YVPEJ80M4,EWF77-YVPEJ90M4,SLF77-Y0.18KW,SLF77-Y0.25KW,SLF77-Y0.37KW,SLF77-Y0.55KW,SLF77-Y0.75KW,SLF77-Y1.1KW,SLF77-Y1.5KW,SLF77-Y100M4,SLF77-Y112M4,SLF77-Y11KW,SLF77-Y132M4,SLF77-Y160M4,SLF77-Y2.2KW,SLF77-Y3KW,SLF77-Y4KW,SLF77-Y5.5KW,SLF77-Y63M4,SLF77-Y7.5KW,SLF77-Y71M4,SLF77-Y80M4,SLF77-Y90M4,SLF77-YEJ100M4,SLF77-YEJ112M4,SLF77-YEJ132M4,SLF77-YEJ160M4,SLF77-YEJ63M4,SLF77-YEJ71M4,SLF77-YEJ80M4,SLF77-YEJ90M4,SLF77-YS100M4,SLF77-YS112M4,SLF77-YS132M4,SLF77-YS160M4,SLF77-YS63M4,SLF77-YS71M4,SLF77-YS80M4,SLF77-YS90M4,SLF77-YVP100M4,SLF77-YVP112M4,SLF77-YVP132M4,SLF77-YVP160M4,SLF77-YVP63M4,SLF77-YVP71M4,SLF77-YVP80M4,SLF77-YVP90M4,SLF77-YVPEJ100M4,SLF77-YVPEJ112M4,SLF77-YVPEJ132M4,SLF77-YVPEJ160M4,SLF77-YVPEJ63M4,SLF77-YVPEJ71M4,SLF77-YVPEJ80M4,SLF77-YVPEJ90M4,DSZF77-Y0.18KW,DSZF77-Y0.25KW,DSZF77-Y0.37KW,DSZF77-Y0.55KW,DSZF77-Y0.75KW,DSZF77-Y1.1KW,DSZF77-Y1.5KW,DSZF77-Y100M4,DSZF77-Y112M4,DSZF77-Y11KW,DSZF77-Y132M4,DSZF77-Y160M4,DSZF77-Y2.2KW,DSZF77-Y3KW,DSZF77-Y4KW,DSZF77-Y5.5KW,DSZF77-Y63M4,DSZF77-Y7.5KW,DSZF77-Y71M4,DSZF77-Y80M4,DSZF77-Y90M4,DSZF77-YEJ100M4,DSZF77-YEJ112M4,DSZF77-YEJ132M4,DSZF77-YEJ160M4,DSZF77-YEJ63M4,DSZF77-YEJ71M4,DSZF77-YEJ80M4,DSZF77-YEJ90M4,DSZF77-YS100M4,DSZF77-YS112M4,DSZF77-YS132M4,DSZF77-YS160M4,DSZF77-YS63M4,DSZF77-YS71M4,DSZF77-YS80M4,DSZF77-YS90M4,DSZF77-YVP100M4,DSZF77-YVP112M4,DSZF77-YVP132M4,DSZF77-YVP160M4,DSZF77-YVP63M4,DSZF77-YVP71M4,DSZF77-YVP80M4,DSZF77-YVP90M4,DSZF77-YVPEJ100M4,DSZF77-YVPEJ112M4,DSZF77-YVPEJ132M4,DSZF77-YVPEJ160M4,DSZF77-YVPEJ63M4,DSZF77-YVPEJ71M4,DSZF77-YVPEJ80M4,DSZF77-YVPEJ90M4,BF77-Y0.18KW,BF77-Y0.25KW,BF77-Y0.37KW,BF77-Y0.55KW,BF77-Y0.75KW,BF77-Y1.1KW,BF77-Y1.5KW,BF77-Y100M4,BF77-Y112M4,BF77-Y11KW,BF77-Y132M4,BF77-Y160M4,BF77-Y2.2KW,BF77-Y3KW,BF77-Y4KW,BF77-Y5.5KW,BF77-Y63M4,BF77-Y7.5KW,BF77-Y71M4,BF77-Y80M4,BF77-Y90M4,BF77-YEJ100M4,BF77-YEJ112M4,BF77-YEJ132M4,BF77-YEJ160M4,BF77-YEJ63M4,BF77-YEJ71M4,BF77-YEJ80M4,BF77-YEJ90M4,BF77-YS100M4,BF77-YS112M4,BF77-YS132M4,BF77-YS160M4,BF77-YS63M4,BF77-YS71M4,BF77-YS80M4,BF77-YS90M4,BF77-YVP100M4,BF77-YVP112M4,BF77-YVP132M4,BF77-YVP160M4,BF77-YVP63M4,BF77-YVP71M4,BF77-YVP80M4,BF77-YVP90M4,BF77-YVPEJ100M4,BF77-YVPEJ112M4,BF77-YVPEJ132M4,BF77-YVPEJ160M4,BF77-YVPEJ63M4,BF77-YVPEJ71M4,BF77-YVPEJ80M4,BF77-YVPEJ90M4,GF77-Y0.18KW,GF77-Y0.25KW,GF77-Y0.37KW,GF77-Y0.55KW,GF77-Y0.75KW,GF77-Y1.1KW,GF77-Y1.5KW,GF77-Y100M4,GF77-Y112M4,GF77-Y11KW,GF77-Y132M4,GF77-Y160M4,GF77-Y2.2KW,GF77-Y3KW,GF77-Y4KW,GF77-Y5.5KW,GF77-Y63M4,GF77-Y7.5KW,GF77-Y71M4,GF77-Y80M4,GF77-Y90M4,GF77-YEJ100M4,GF77-YEJ112M4,GF77-YEJ132M4,GF77-YEJ160M4,GF77-YEJ63M4,GF77-YEJ71M4,GF77-YEJ80M4,GF77-YEJ90M4,GF77-YS100M4,GF77-YS112M4,GF77-YS132M4,GF77-YS160M4,GF77-YS63M4,GF77-YS71M4,GF77-YS80M4,GF77-YS90M4,GF77-YVP100M4,GF77-YVP112M4,GF77-YVP132M4,GF77-YVP160M4,GF77-YVP63M4,GF77-YVP71M4,GF77-YVP80M4,GF77-YVP90M4,GF77-YVPEJ100M4,GF77-YVPEJ112M4,GF77-YVPEJ132M4,GF77-YVPEJ160M4,GF77-YVPEJ63M4,GF77-YVPEJ71M4,GF77-YVPEJ80M4,GF77-YVPEJ90M4,FC77-Y0.18KW,FC77-Y0.25KW,FC77-Y0.37KW,FC77-Y0.55KW,FC77-Y0.75KW,FC77-Y1.1KW,FC77-Y1.5KW,FC77-Y100M4,FC77-Y112M4,FC77-Y11KW,FC77-Y132M4,FC77-Y160M4,FC77-Y2.2KW,FC77-Y3KW,FC77-Y4KW,FC77-Y5.5KW,FC77-Y63M4,FC77-Y7.5KW,FC77-Y71M4,FC77-Y80M4,FC77-Y90M4,FC77-YEJ100M4,FC77-YEJ112M4,FC77-YEJ132M4,FC77-YEJ160M4,FC77-YEJ63M4,FC77-YEJ71M4,FC77-YEJ80M4,FC77-YEJ90M4,FC77-YS100M4,FC77-YS112M4,FC77-YS132M4,FC77-YS160M4,FC77-YS63M4,FC77-YS71M4,FC77-YS80M4,FC77-YS90M4,FC77-YVP100M4,FC77-YVP112M4,FC77-YVP132M4,FC77-YVP160M4,FC77-YVP63M4,FC77-YVP71M4,FC77-YVP80M4,FC77-YVP90M4,FC77-YVPEJ100M4,FC77-YVPEJ112M4,FC77-YVPEJ132M4,FC77-YVPEJ160M4,FC77-YVPEJ63M4,FC77-YVPEJ71M4,FC77-YVPEJ80M4,FC77-YVPEJ90M4,MTP77-Y0.18KW,MTP77-Y0.25KW,MTP77-Y0.37KW,MTP77-Y0.55KW,MTP77-Y0.75KW,MTP77-Y1.1KW,MTP77-Y1.5KW,MTP77-Y100M4,MTP77-Y112M4,MTP77-Y11KW,MTP77-Y132M4,MTP77-Y160M4,MTP77-Y2.2KW,MTP77-Y3KW,MTP77-Y4KW,MTP77-Y5.5KW,MTP77-Y63M4,MTP77-Y7.5KW,MTP77-Y71M4,MTP77-Y80M4,MTP77-Y90M4,MTP77-YEJ100M4,MTP77-YEJ112M4,MTP77-YEJ132M4,MTP77-YEJ160M4,MTP77-YEJ63M4,MTP77-YEJ71M4,MTP77-YEJ80M4,MTP77-YEJ90M4,MTP77-YS100M4,MTP77-YS112M4,MTP77-YS132M4,MTP77-YS160M4,MTP77-YS63M4,MTP77-YS71M4,MTP77-YS80M4,MTP77-YS90M4,MTP77-YVP100M4,MTP77-YVP112M4,MTP77-YVP132M4,MTP77-YVP160M4,MTP77-YVP63M4,MTP77-YVP71M4,MTP77-YVP80M4,MTP77-YVP90M4,MTP77-YVPEJ100M4,MTP77-YVPEJ112M4,MTP77-YVPEJ132M4,MTP77-YVPEJ160M4,MTP77-YVPEJ63M4,MTP77-YVPEJ71M4,MTP77-YVPEJ80M4,MTP77-YVPEJ90M4,WXF77-WSS0.18KW,WXF77-WSS0.25KW,WXF77-WSS0.37KW,WXF77-WSS0.55KW,WXF77-WSS0.75KW,WXF77-WSS1.1KW,WXF77-WSS1.5KW,WXF77-WSS100M4,WXF77-WSS112M4,WXF77-WSS11KW,WXF77-WSS132M4,WXF77-WSS160M4,WXF77-WSS2.2KW,WXF77-WSS3KW,WXF77-WSS4KW,WXF77-WSS5.5KW,WXF77-WSS63M4,WXF77-WSS7.5KW,WXF77-WSS71M4,WXF77-WSS80M4,WXF77-WSS90M4,WXF77-WSSB100M4,WXF77-WSSB112M4,WXF77-WSSB132M4,WXF77-WSSB160M4,WXF77-WSSB63M4,WXF77-WSSB71M4,WXF77-WSSB80M4,WXF77-WSSB90M4,WXF77-WSSVP100M4,WXF77-WSSVP112M4,WXF77-WSSVP132M4,WXF77-WSSVP160M4,WXF77-WSSVP63M4,WXF77-WSSVP71M4,WXF77-WSSVP80M4,WXF77-WSSVP90M4,WXF77-WSSVPB100M4,WXF77-WSSVPB112M4,WXF77-WSSVPB132M4,WXF77-WSSVPB160M4,WXF77-WSSVPB63M4,WXF77-WSSVPB71M4,WXF77-WSSVPB80M4,WXF77-WSSVPB90M4。
