FA37減速機重量：FA37減速機重量12公斤，FA37減速機與電機重量分別如下

FA37減速機與0.12KW電機重量17.5公斤，FA37減速機與0.18KW電機重量18公斤，FA37減速機與0.25KW電機重量22公斤，FA37減速機與0.37KW電機重量22.5公斤，FA37減速機與0.55KW電機重量27公斤，FA37減速機與0.75KW電機重量28公斤，FA37減速機與1.1KW電機重量32公斤，FA37減速機與1.5KW電機重量35公斤，FA37減速機與2.2KW電機重量44公斤，FA37減速機與3KW電機重量47公斤。

FA37減速機加油量：可加齒輪油分體減速機電機

FA37減速機M3方式安裝加0.7L，FA37減速機M2方式安裝加1.25L，FA37減速機M1方式安裝加0.95L，FA37減速機M4方式安裝加1.25L，FA37減速機M5方式安裝加1L，FA37減速機M6方式安裝加1.1L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時,您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

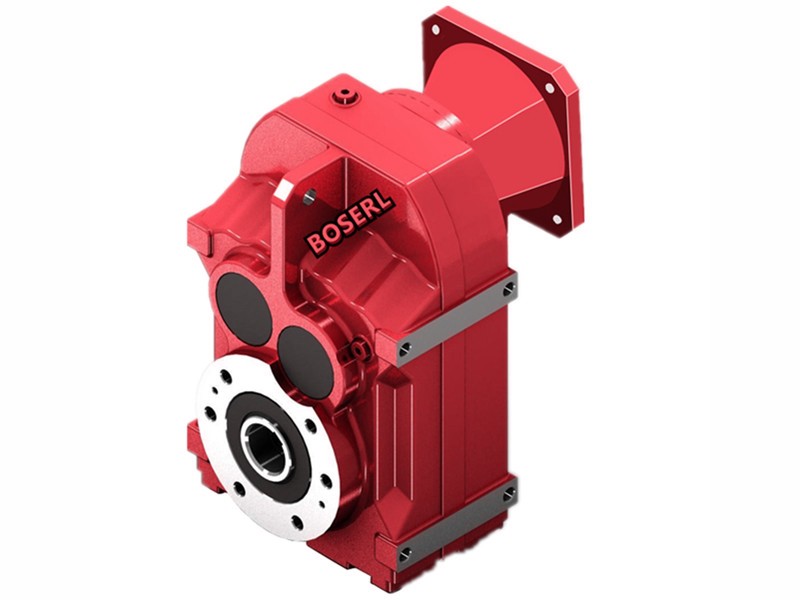

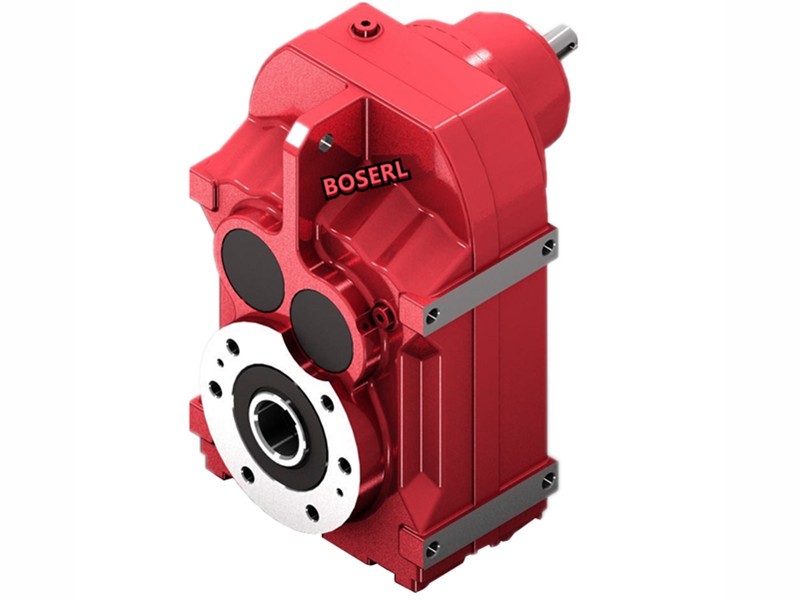

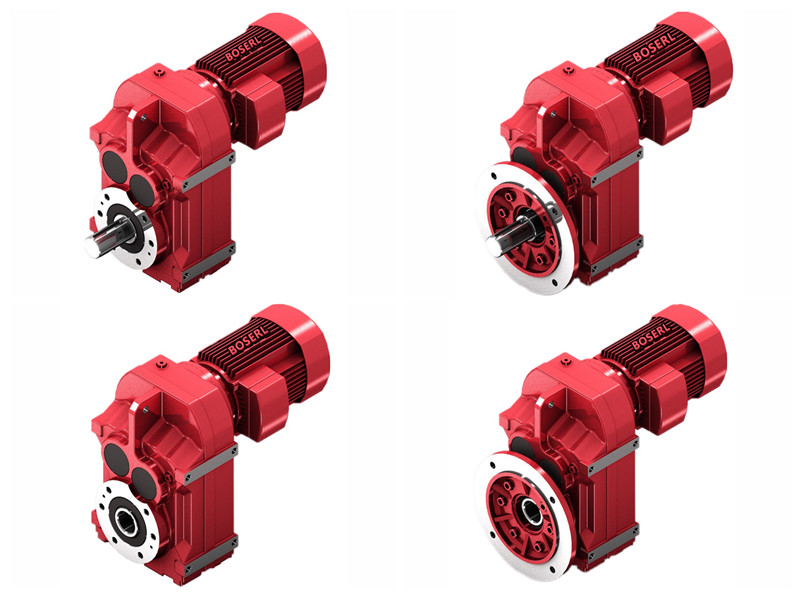

FA37減速機實物圖：圖一為FA37臥式孔輸出平行軸減速機，圖二F37底腳方式安裝軸輸出平行軸減速機，圖三為FF37立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF37立式法蘭孔輸出平行軸斜齒輪減速機。

FA37減速機型號表示方法：

FA37減速機型號結構FA37-B1.1KW-4P-減速比-方式安裝-接線盒位置。

FA37減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置與自鎖功能，FA37，F37，FA37，FAF37減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FA37減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FA37減速機參數：

FA37減速機減速比1:128，1:117，1:100，1:86，1:80，1:70，1:66，1:58，1:54，1:51，1:47，1:43，1:38，1:35，1:31，1:28，1:23，1:20，1:19，1:17，1:15，1:14，1:12，1:11，1:10，1:9，1:8，1:7，1:6，1:5，1:4，1:3

FA37減速機輸出轉數：11轉，12轉，14轉，16轉，17轉，20轉，21轉，24轉，26轉，27轉，30轉，32轉，37轉，39轉，44轉，50轉，59轉，68轉，73轉，82轉，89轉，98轉，109轉，126轉，134轉，156轉，175轉，188轉，208轉，231轉，269轉，286轉，332轉，371轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA37減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA37與0.12KW，FA37與0.18KW，FA37與0.25KW，FA37與0.37KW，FA37與0.55KW，FA37與0.75KW，FA37與1.1KW，FA37與1.5KW，FA37與2.2KW，FA37與3KW。

FA37減速機輸出扭矩200N.m，190N.m，185N.m，175N.m，170N.m，145N.m，140N.m，135N.m，125N.m，120N.m，110N.m，105N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

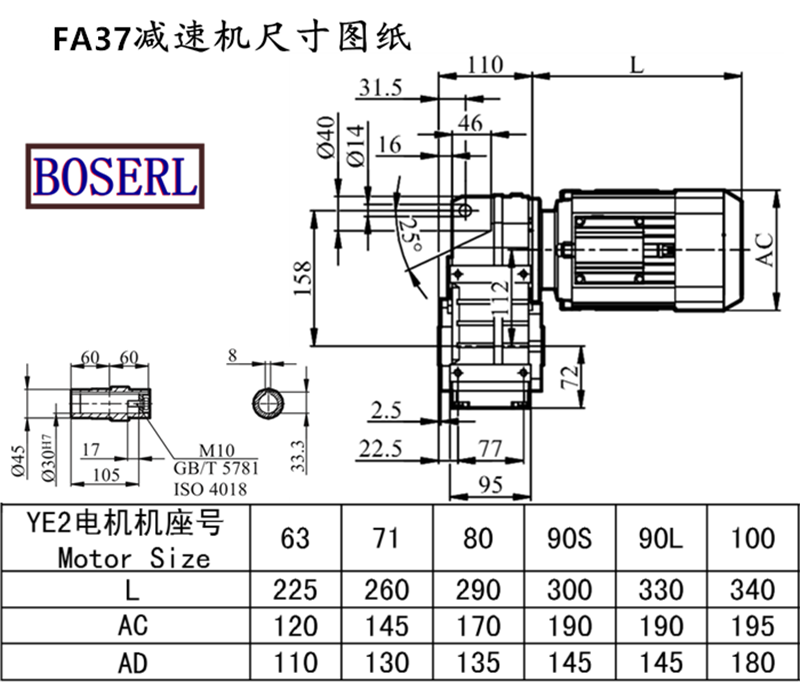

FA37減速機安裝尺寸：高248*寬165*長160

FA37減速機型號：

FA37AQA80,FA37AQA100,FA37AQA115,FA37AQA140,FA37AQA160,FA37AQA190,FA37AQH80,FA37AQH100,FA37AQH115,FA37AQH140,FA37AQH160,FA37AQH190,JRTFA37-Y0.12KW,JRTFA37-Y0.18KW,JRTFA37-Y0.25KW,JRTFA37-Y0.A37KW,JRTFA37-Y0.55KW,JRTFA37-Y0.75KW,JRTFA37-Y1.1KW,JRTFA37-Y1.5KW,JRTFA37-Y100M4,JRTFA37-Y2.2KW,JRTFA37-Y3KW,JRTFA37-Y63M4,JRTFA37-Y71M4,JRTFA37-Y80M4,JRTFA37-Y90M4,JRTFA37-YEJ100M4,JRTFA37-YEJ63M4,JRTFA37-YEJ71M4,JRTFA37-YEJ80M4,JRTFA37-YEJ90M4,JRTFA37-YS100M4,JRTFA37-YS63M4,JRTFA37-YS71M4,JRTFA37-YS80M4,JRTFA37-YS90M4,JRTFA37-YVP100M4,JRTFA37-YVP63M4,JRTFA37-YVP71M4,JRTFA37-YVP80M4,JRTFA37-YVP90M4,JRTFA37-YVPEJ100M4,JRTFA37-YVPEJ63M4,JRTFA37-YVPEJ71M4,JRTFA37-YVPEJ80M4,JRTFA37-YVPEJ90M4,EWFA37-Y0.12KW,EWFA37-Y0.18KW,EWFA37-Y0.25KW,EWFA37-Y0.A37KW,EWFA37-Y0.55KW,EWFA37-Y0.75KW,EWFA37-Y1.1KW,EWFA37-Y1.5KW,EWFA37-Y100M4,EWFA37-Y2.2KW,EWFA37-Y3KW,EWFA37-Y63M4,EWFA37-Y71M4,EWFA37-Y80M4,EWFA37-Y90M4,EWFA37-YEJ100M4,EWFA37-YEJ63M4,EWFA37-YEJ71M4,EWFA37-YEJ80M4,EWFA37-YEJ90M4,EWFA37-YS100M4,EWFA37-YS63M4,EWFA37-YS71M4,EWFA37-YS80M4,EWFA37-YS90M4,EWFA37-YVP100M4,EWFA37-YVP63M4,EWFA37-YVP71M4,EWFA37-YVP80M4,EWFA37-YVP90M4,EWFA37-YVPEJ100M4,EWFA37-YVPEJ63M4,EWFA37-YVPEJ71M4,EWFA37-YVPEJ80M4,EWFA37-YVPEJ90M4,SLFA37-Y0.12KW,SLFA37-Y0.18KW,SLFA37-Y0.25KW,SLFA37-Y0.A37KW,SLFA37-Y0.55KW,SLFA37-Y0.75KW,SLFA37-Y1.1KW,SLFA37-Y1.5KW,SLFA37-Y100M4,SLFA37-Y2.2KW,SLFA37-Y3KW,SLFA37-Y63M4,SLFA37-Y71M4,SLFA37-Y80M4,SLFA37-Y90M4,SLFA37-YEJ100M4,SLFA37-YEJ63M4,SLFA37-YEJ71M4,SLFA37-YEJ80M4,SLFA37-YEJ90M4,SLFA37-YS100M4,SLFA37-YS63M4,SLFA37-YS71M4,SLFA37-YS80M4,SLFA37-YS90M4,SLFA37-YVP100M4,SLFA37-YVP63M4,SLFA37-YVP71M4,SLFA37-YVP80M4,SLFA37-YVP90M4,SLFA37-YVPEJ100M4,SLFA37-YVPEJ63M4,SLFA37-YVPEJ71M4,SLFA37-YVPEJ80M4,SLFA37-YVPEJ90M4,DSZFA37-Y0.12KW,DSZFA37-Y0.18KW,DSZFA37-Y0.25KW,DSZFA37-Y0.A37KW,DSZFA37-Y0.55KW,DSZFA37-Y0.75KW,DSZFA37-Y1.1KW,DSZFA37-Y1.5KW,DSZFA37-Y100M4,DSZFA37-Y2.2KW,DSZFA37-Y3KW,DSZFA37-Y63M4,DSZFA37-Y71M4,DSZFA37-Y80M4,DSZFA37-Y90M4,DSZFA37-YEJ100M4,DSZFA37-YEJ63M4,DSZFA37-YEJ71M4,DSZFA37-YEJ80M4,DSZFA37-YEJ90M4,DSZFA37-YS100M4,DSZFA37-YS63M4,DSZFA37-YS71M4,DSZFA37-YS80M4,DSZFA37-YS90M4,DSZFA37-YVP100M4,DSZFA37-YVP63M4,DSZFA37-YVP71M4,DSZFA37-YVP80M4,DSZFA37-YVP90M4,DSZFA37-YVPEJ100M4,DSZFA37-YVPEJ63M4,DSZFA37-YVPEJ71M4,DSZFA37-YVPEJ80M4,DSZFA37-YVPEJ90M4,BFA37-Y0.12KW,BFA37-Y0.18KW,BFA37-Y0.25KW,BFA37-Y0.A37KW,BFA37-Y0.55KW,BFA37-Y0.75KW,BFA37-Y1.1KW,BFA37-Y1.5KW,BFA37-Y100M4,BFA37-Y2.2KW,BFA37-Y3KW,BFA37-Y63M4,BFA37-Y71M4,BFA37-Y80M4,BFA37-Y90M4,BFA37-YEJ100M4,BFA37-YEJ63M4,BFA37-YEJ71M4,BFA37-YEJ80M4,BFA37-YEJ90M4,BFA37-YS100M4,BFA37-YS63M4,BFA37-YS71M4,BFA37-YS80M4,BFA37-YS90M4,BFA37-YVP100M4,BFA37-YVP63M4,BFA37-YVP71M4,BFA37-YVP80M4,BFA37-YVP90M4,BFA37-YVPEJ100M4,BFA37-YVPEJ63M4,BFA37-YVPEJ71M4,BFA37-YVPEJ80M4,BFA37-YVPEJ90M4,GFA37-Y0.12KW,GFA37-Y0.18KW,GFA37-Y0.25KW,GFA37-Y0.A37KW,GFA37-Y0.55KW,GFA37-Y0.75KW,GFA37-Y1.1KW,GFA37-Y1.5KW,GFA37-Y100M4,GFA37-Y2.2KW,GFA37-Y3KW,GFA37-Y63M4,GFA37-Y71M4,GFA37-Y80M4,GFA37-Y90M4,GFA37-YEJ100M4,GFA37-YEJ63M4,GFA37-YEJ71M4,GFA37-YEJ80M4,GFA37-YEJ90M4,GFA37-YS100M4,GFA37-YS63M4,GFA37-YS71M4,GFA37-YS80M4,GFA37-YS90M4,GFA37-YVP100M4,GFA37-YVP63M4,GFA37-YVP71M4,GFA37-YVP80M4,GFA37-YVP90M4,GFA37-YVPEJ100M4,GFA37-YVPEJ63M4,GFA37-YVPEJ71M4,GFA37-YVPEJ80M4,GFA37-YVPEJ90M4,FCA37-Y0.12KW,FCA37-Y0.18KW,FCA37-Y0.25KW,FCA37-Y0.A37KW,FCA37-Y0.55KW,FCA37-Y0.75KW,FCA37-Y1.1KW,FCA37-Y1.5KW,FCA37-Y100M4,FCA37-Y2.2KW,FCA37-Y3KW,FCA37-Y63M4,FCA37-Y71M4,FCA37-Y80M4,FCA37-Y90M4,FCA37-YEJ100M4,FCA37-YEJ63M4,FCA37-YEJ71M4,FCA37-YEJ80M4,FCA37-YEJ90M4,FCA37-YS100M4,FCA37-YS63M4,FCA37-YS71M4,FCA37-YS80M4,FCA37-YS90M4,FCA37-YVP100M4,FCA37-YVP63M4,FCA37-YVP71M4,FCA37-YVP80M4,FCA37-YVP90M4,FCA37-YVPEJ100M4,FCA37-YVPEJ63M4,FCA37-YVPEJ71M4,FCA37-YVPEJ80M4,FCA37-YVPEJ90M4,MTPA37-Y0.12KW,MTPA37-Y0.18KW,MTPA37-Y0.25KW,MTPA37-Y0.A37KW,MTPA37-Y0.55KW,MTPA37-Y0.75KW,MTPA37-Y1.1KW,MTPA37-Y1.5KW,MTPA37-Y100M4,MTPA37-Y2.2KW,MTPA37-Y3KW,MTPA37-Y63M4,MTPA37-Y71M4,MTPA37-Y80M4,MTPA37-Y90M4,MTPA37-YEJ100M4,MTPA37-YEJ63M4,MTPA37-YEJ71M4,MTPA37-YEJ80M4,MTPA37-YEJ90M4,MTPA37-YS100M4,MTPA37-YS63M4,MTPA37-YS71M4,MTPA37-YS80M4,MTPA37-YS90M4,MTPA37-YVP100M4,MTPA37-YVP63M4,MTPA37-YVP71M4,MTPA37-YVP80M4,MTPA37-YVP90M4,MTPA37-YVPEJ100M4,MTPA37-YVPEJ63M4,MTPA37-YVPEJ71M4,MTPA37-YVPEJ80M4,MTPA37-YVPEJ90M4,WXFA37-WSS0.12KW,WXFA37-WSS0.18KW,WXFA37-WSS0.25KW,WXFA37-WSS0.A37KW,WXFA37-WSS0.55KW,WXFA37-WSS0.75KW,WXFA37-WSS1.1KW,WXFA37-WSS1.5KW,WXFA37-WSS100M4,WXFA37-WSS2.2KW,WXFA37-WSS3KW,WXFA37-WSS63M4,WXFA37-WSS71M4,WXFA37-WSS80M4,WXFA37-WSS90M4,WXFA37-WSSB100M4,WXFA37-WSSB63M4,WXFA37-WSSB71M4,WXFA37-WSSB80M4,WXFA37-WSSB90M4,WXFA37-WSSVP100M4,WXFA37-WSSVP63M4,WXFA37-WSSVP71M4,WXFA37-WSSVP80M4,WXFA37-WSSVP90M4,WXFA37-WSSVPB100M4,WXFA37-WSSVPB63M4,WXFA37-WSSVPB71M4,WXFA37-WSSVPB80M4,WXFA37-WSSVPB90M4。

FA37減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.8x29ft.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F37減速機
