FAF87減速機加電機重量：

FAF87減速機加0.75KW電機重量169KG，FAF87減速機加1.1KW電機重量173KG，FAF87減速機加1.5KW電機重量176KG，FAF87減速機加2.2KW電機重量185KG，FAF87減速機加3KW電機重量191KG，FAF87減速機加4KW電機重量199KG，FAF87減速機加5.5KW電機重量213KG，FAF87減速機加7.5KW電機重量226KG，FAF87減速機加11KW電機重量268KG，FAF87減速機加15KW電機重量288KG，FAF87減速機加18.5KW電機重量325KG，FAF87減速機加22KW電機重量338KG。變頻電機減速機

FAF87減速機加油量：可加齒輪潤滑油

FAF87減速機M4安裝形式加13.8L，FAF87減速機M3安裝形式加7.7L，FAF87減速機M2安裝形式加13L，FAF87減速機M1安裝形式加10.8L，FAF87減速機M5安裝形式加10.8L，FAF87減速機M6安裝形式加11L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

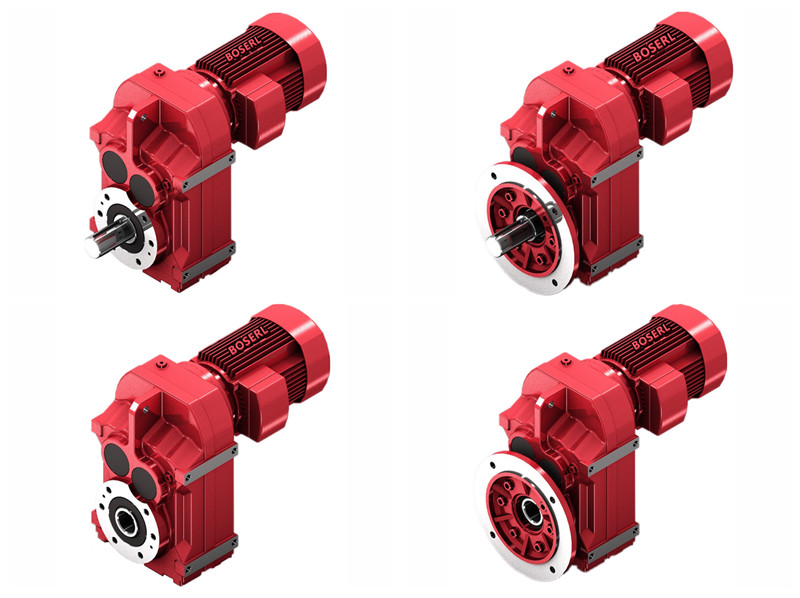

FAF87減速機實物圖：圖一為FAF87立式法蘭孔輸出平行軸斜齒輪減速機，圖二F87底腳安裝形式軸輸出平行軸減速機，圖三為FF87立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA87臥式孔輸出平行軸斜齒輪減速機。

FAF87減速機型號表示方法：

FAF87減速機型號結構FAF87-B11KW-4P-減速比-安裝形式-接線盒位置。

FAF87減速機性能參數表結構說明：TF電機熱保護裝置，HR手動釋放裝置，HF手動釋放裝置加自鎖功能，FAF87，F87，FF87，FA87減速機機座號，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FAF87減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝形式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FAF87減速機參數：

FAF87減速機輸出扭矩3000N.m，2940N.m，2880N.m，2820N.m，2720N.m，2610N.m，2510N.m，2450N.m，1530N.m，1460N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF87減速機減速比1:270，1:255，1:228，1:197，1:179，1:159，1:134，1:123，1:109，1:97，1:88，1:76，1:68，1:56，1:50，1:45，1:39，1:35，1:29，1:33，1:28，1:26，1:23，1:21，1:19，1:17，1:15，1:13，1:11，1:9，1:8，1:7，1:6，1:5，1:4

FAF87減速機輸出轉數5.2轉，5.5轉，6.1轉，7.1轉，7.8轉，8.8轉，10轉，11轉，13轉，14轉，16轉，18轉，20轉，25轉，28轉，31轉，36轉，40轉，48轉，49轉，53轉，59轉，66轉，73轉，82轉，90轉，107轉，122轉，146轉，169轉，190轉，211轉，249轉，285轉，340轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF87減速機電機可加直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FAF87加0.55KW，FAF87加0.75KW，FAF87加1.1KW，FAF87加1.5KW，FAF87加2.2KW，FAF87加3KW，FAF87加4KW，FAF87加5.5KW，FAF87加7.5KW，FAF87加11KW，FAF87加15KW，FAF87加18.5KW，FAF87加22KW。

FAF87減速機外觀尺寸：輸出孔直徑Φ60+鍵4.4（可定做），高531*寬330*長259（帶法蘭）

FAF87減速機型號：FAF87AQA80,FAF87AQA100,FAF87AQA115,FAF87AQA140,FAF87AQA160,FAF87AQA190,FAF87AQH80,FAF87AQH100,FAF87AQH115,FAF87AQH140,FAF87AQH160,FAF87AQH190,JRTFAF87-Y0.37KW,JRTFAF87-Y0.55KW,JRTFAF87-Y0.75KW,JRTFAF87-Y1.1KW,JRTFAF87-Y1.5KW,JRTFAF87-Y100M4,JRTFAF87-Y112M4,JRTFAF87-Y11KW,JRTFAF87-Y132M4,JRTFAF87-Y15KW,JRTFAF87-Y160M4,JRTFAF87-Y18.5KW,JRTFAF87-Y180M4,JRTFAF87-Y2.2KW,JRTFAF87-Y200M4,JRTFAF87-Y22KW,JRTFAF87-Y3KW,JRTFAF87-Y4KW,JRTFAF87-Y5.5KW,JRTFAF87-Y7.5KW,JRTFAF87-Y71M4,JRTFAF87-Y80M4,JRTFAF87-Y90M4,JRTFAF87-YEJ100M4,JRTFAF87-YEJ112M4,JRTFAF87-YEJ132M4,JRTFAF87-YEJ160M4,JRTFAF87-YEJ180M4,JRTFAF87-YEJ200M4,JRTFAF87-YEJ71M4,JRTFAF87-YEJ80M4,JRTFAF87-YEJ90M4,JRTFAF87-YS100M4,JRTFAF87-YS112M4,JRTFAF87-YS132M4,JRTFAF87-YS160M4,JRTFAF87-YS180M4,JRTFAF87-YS200M4,JRTFAF87-YS71M4,JRTFAF87-YS80M4,JRTFAF87-YS90M4,JRTFAF87-YVP100M4,JRTFAF87-YVP112M4,JRTFAF87-YVP132M4,JRTFAF87-YVP160M4,JRTFAF87-YVP180M4,JRTFAF87-YVP200M4,JRTFAF87-YVP71M4,JRTFAF87-YVP80M4,JRTFAF87-YVP90M4,JRTFAF87-YVPEJ100M4,JRTFAF87-YVPEJ112M4,JRTFAF87-YVPEJ132M4,JRTFAF87-YVPEJ160M4,JRTFAF87-YVPEJ180M4,JRTFAF87-YVPEJ200M4,JRTFAF87-YVPEJ71M4,JRTFAF87-YVPEJ80M4,JRTFAF87-YVPEJ90M4,EWFAF87-Y0.37KW,EWFAF87-Y0.55KW,EWFAF87-Y0.75KW,EWFAF87-Y1.1KW,EWFAF87-Y1.5KW,EWFAF87-Y100M4,EWFAF87-Y112M4,EWFAF87-Y11KW,EWFAF87-Y132M4,EWFAF87-Y15KW,EWFAF87-Y160M4,EWFAF87-Y18.5KW,EWFAF87-Y180M4,EWFAF87-Y2.2KW,EWFAF87-Y200M4,EWFAF87-Y22KW,EWFAF87-Y3KW,EWFAF87-Y4KW,EWFAF87-Y5.5KW,EWFAF87-Y7.5KW,EWFAF87-Y71M4,EWFAF87-Y80M4,EWFAF87-Y90M4,EWFAF87-YEJ100M4,EWFAF87-YEJ112M4,EWFAF87-YEJ132M4,EWFAF87-YEJ160M4,EWFAF87-YEJ180M4,EWFAF87-YEJ200M4,EWFAF87-YEJ71M4,EWFAF87-YEJ80M4,EWFAF87-YEJ90M4,EWFAF87-YS100M4,EWFAF87-YS112M4,EWFAF87-YS132M4,EWFAF87-YS160M4,EWFAF87-YS180M4,EWFAF87-YS200M4,EWFAF87-YS71M4,EWFAF87-YS80M4,EWFAF87-YS90M4,EWFAF87-YVP100M4,EWFAF87-YVP112M4,EWFAF87-YVP132M4,EWFAF87-YVP160M4,EWFAF87-YVP180M4,EWFAF87-YVP200M4,EWFAF87-YVP71M4,EWFAF87-YVP80M4,EWFAF87-YVP90M4,EWFAF87-YVPEJ100M4,EWFAF87-YVPEJ112M4,EWFAF87-YVPEJ132M4,EWFAF87-YVPEJ160M4,EWFAF87-YVPEJ180M4,EWFAF87-YVPEJ200M4,EWFAF87-YVPEJ71M4,EWFAF87-YVPEJ80M4,EWFAF87-YVPEJ90M4,SLFAF87-Y0.37KW,SLFAF87-Y0.55KW,SLFAF87-Y0.75KW,SLFAF87-Y1.1KW,SLFAF87-Y1.5KW,SLFAF87-Y100M4,SLFAF87-Y112M4,SLFAF87-Y11KW,SLFAF87-Y132M4,SLFAF87-Y15KW,SLFAF87-Y160M4,SLFAF87-Y18.5KW,SLFAF87-Y180M4,SLFAF87-Y2.2KW,SLFAF87-Y200M4,SLFAF87-Y22KW,SLFAF87-Y3KW,SLFAF87-Y4KW,SLFAF87-Y5.5KW,SLFAF87-Y7.5KW,SLFAF87-Y71M4,SLFAF87-Y80M4,SLFAF87-Y90M4,SLFAF87-YEJ100M4,SLFAF87-YEJ112M4,SLFAF87-YEJ132M4,SLFAF87-YEJ160M4,SLFAF87-YEJ180M4,SLFAF87-YEJ200M4,SLFAF87-YEJ71M4,SLFAF87-YEJ80M4,SLFAF87-YEJ90M4,SLFAF87-YS100M4,SLFAF87-YS112M4,SLFAF87-YS132M4,SLFAF87-YS160M4,SLFAF87-YS180M4,SLFAF87-YS200M4,SLFAF87-YS71M4,SLFAF87-YS80M4,SLFAF87-YS90M4,SLFAF87-YVP100M4,SLFAF87-YVP112M4,SLFAF87-YVP132M4,SLFAF87-YVP160M4,SLFAF87-YVP180M4,SLFAF87-YVP200M4,SLFAF87-YVP71M4,SLFAF87-YVP80M4,SLFAF87-YVP90M4,SLFAF87-YVPEJ100M4,SLFAF87-YVPEJ112M4,SLFAF87-YVPEJ132M4,SLFAF87-YVPEJ160M4,SLFAF87-YVPEJ180M4,SLFAF87-YVPEJ200M4,SLFAF87-YVPEJ71M4,SLFAF87-YVPEJ80M4,SLFAF87-YVPEJ90M4,DSZFAF87-Y0.37KW,DSZFAF87-Y0.55KW,DSZFAF87-Y0.75KW,DSZFAF87-Y1.1KW,DSZFAF87-Y1.5KW,DSZFAF87-Y100M4,DSZFAF87-Y112M4,DSZFAF87-Y11KW,DSZFAF87-Y132M4,DSZFAF87-Y15KW,DSZFAF87-Y160M4,DSZFAF87-Y18.5KW,DSZFAF87-Y180M4,DSZFAF87-Y2.2KW,DSZFAF87-Y200M4,DSZFAF87-Y22KW,DSZFAF87-Y3KW,DSZFAF87-Y4KW,DSZFAF87-Y5.5KW,DSZFAF87-Y7.5KW,DSZFAF87-Y71M4,DSZFAF87-Y80M4,DSZFAF87-Y90M4,DSZFAF87-YEJ100M4,DSZFAF87-YEJ112M4,DSZFAF87-YEJ132M4,DSZFAF87-YEJ160M4,DSZFAF87-YEJ180M4,DSZFAF87-YEJ200M4,DSZFAF87-YEJ71M4,DSZFAF87-YEJ80M4,DSZFAF87-YEJ90M4,DSZFAF87-YS100M4,DSZFAF87-YS112M4,DSZFAF87-YS132M4,DSZFAF87-YS160M4,DSZFAF87-YS180M4,DSZFAF87-YS200M4,DSZFAF87-YS71M4,DSZFAF87-YS80M4,DSZFAF87-YS90M4,DSZFAF87-YVP100M4,DSZFAF87-YVP112M4,DSZFAF87-YVP132M4,DSZFAF87-YVP160M4,DSZFAF87-YVP180M4,DSZFAF87-YVP200M4,DSZFAF87-YVP71M4,DSZFAF87-YVP80M4,DSZFAF87-YVP90M4,DSZFAF87-YVPEJ100M4,DSZFAF87-YVPEJ112M4,DSZFAF87-YVPEJ132M4,DSZFAF87-YVPEJ160M4,DSZFAF87-YVPEJ180M4,DSZFAF87-YVPEJ200M4,DSZFAF87-YVPEJ71M4,DSZFAF87-YVPEJ80M4,DSZFAF87-YVPEJ90M4,BFAF87-Y0.37KW,BFAF87-Y0.55KW,BFAF87-Y0.75KW,BFAF87-Y1.1KW,BFAF87-Y1.5KW,BFAF87-Y100M4,BFAF87-Y112M4,BFAF87-Y11KW,BFAF87-Y132M4,BFAF87-Y15KW,BFAF87-Y160M4,BFAF87-Y18.5KW,BFAF87-Y180M4,BFAF87-Y2.2KW,BFAF87-Y200M4,BFAF87-Y22KW,BFAF87-Y3KW,BFAF87-Y4KW,BFAF87-Y5.5KW,BFAF87-Y7.5KW,BFAF87-Y71M4,BFAF87-Y80M4,BFAF87-Y90M4,BFAF87-YEJ100M4,BFAF87-YEJ112M4,BFAF87-YEJ132M4,BFAF87-YEJ160M4,BFAF87-YEJ180M4,BFAF87-YEJ200M4,BFAF87-YEJ71M4,BFAF87-YEJ80M4,BFAF87-YEJ90M4,BFAF87-YS100M4,BFAF87-YS112M4,BFAF87-YS132M4,BFAF87-YS160M4,BFAF87-YS180M4,BFAF87-YS200M4,BFAF87-YS71M4,BFAF87-YS80M4,BFAF87-YS90M4,BFAF87-YVP100M4,BFAF87-YVP112M4,BFAF87-YVP132M4,BFAF87-YVP160M4,BFAF87-YVP180M4,BFAF87-YVP200M4,BFAF87-YVP71M4,BFAF87-YVP80M4,BFAF87-YVP90M4,BFAF87-YVPEJ100M4,BFAF87-YVPEJ112M4,BFAF87-YVPEJ132M4,BFAF87-YVPEJ160M4,BFAF87-YVPEJ180M4,BFAF87-YVPEJ200M4,BFAF87-YVPEJ71M4,BFAF87-YVPEJ80M4,BFAF87-YVPEJ90M4,GFAF87-Y0.37KW,GFAF87-Y0.55KW,GFAF87-Y0.75KW,GFAF87-Y1.1KW,GFAF87-Y1.5KW,GFAF87-Y100M4,GFAF87-Y112M4,GFAF87-Y11KW,GFAF87-Y132M4,GFAF87-Y15KW,GFAF87-Y160M4,GFAF87-Y18.5KW,GFAF87-Y180M4,GFAF87-Y2.2KW,GFAF87-Y200M4,GFAF87-Y22KW,GFAF87-Y3KW,GFAF87-Y4KW,GFAF87-Y5.5KW,GFAF87-Y7.5KW,GFAF87-Y71M4,GFAF87-Y80M4,GFAF87-Y90M4,GFAF87-YEJ100M4,GFAF87-YEJ112M4,GFAF87-YEJ132M4,GFAF87-YEJ160M4,GFAF87-YEJ180M4,GFAF87-YEJ200M4,GFAF87-YEJ71M4,GFAF87-YEJ80M4,GFAF87-YEJ90M4,GFAF87-YS100M4,GFAF87-YS112M4,GFAF87-YS132M4,GFAF87-YS160M4,GFAF87-YS180M4,GFAF87-YS200M4,GFAF87-YS71M4,GFAF87-YS80M4,GFAF87-YS90M4,GFAF87-YVP100M4,GFAF87-YVP112M4,GFAF87-YVP132M4,GFAF87-YVP160M4,GFAF87-YVP180M4,GFAF87-YVP200M4,GFAF87-YVP71M4,GFAF87-YVP80M4,GFAF87-YVP90M4,GFAF87-YVPEJ100M4,GFAF87-YVPEJ112M4,GFAF87-YVPEJ132M4,GFAF87-YVPEJ160M4,GFAF87-YVPEJ180M4,GFAF87-YVPEJ200M4,GFAF87-YVPEJ71M4,GFAF87-YVPEJ80M4,GFAF87-YVPEJ90M4,FCAF87-Y0.37KW,FCAF87-Y0.55KW,FCAF87-Y0.75KW,FCAF87-Y1.1KW,FCAF87-Y1.5KW,FCAF87-Y100M4,FCAF87-Y112M4,FCAF87-Y11KW,FCAF87-Y132M4,FCAF87-Y15KW,FCAF87-Y160M4,FCAF87-Y18.5KW,FCAF87-Y180M4,FCAF87-Y2.2KW,FCAF87-Y200M4,FCAF87-Y22KW,FCAF87-Y3KW,FCAF87-Y4KW,FCAF87-Y5.5KW,FCAF87-Y7.5KW,FCAF87-Y71M4,FCAF87-Y80M4,FCAF87-Y90M4,FCAF87-YEJ100M4,FCAF87-YEJ112M4,FCAF87-YEJ132M4,FCAF87-YEJ160M4,FCAF87-YEJ180M4,FCAF87-YEJ200M4,FCAF87-YEJ71M4,FCAF87-YEJ80M4,FCAF87-YEJ90M4,FCAF87-YS100M4,FCAF87-YS112M4,FCAF87-YS132M4,FCAF87-YS160M4,FCAF87-YS180M4,FCAF87-YS200M4,FCAF87-YS71M4,FCAF87-YS80M4,FCAF87-YS90M4,FCAF87-YVP100M4,FCAF87-YVP112M4,FCAF87-YVP132M4,FCAF87-YVP160M4,FCAF87-YVP180M4,FCAF87-YVP200M4,FCAF87-YVP71M4,FCAF87-YVP80M4,FCAF87-YVP90M4,FCAF87-YVPEJ100M4,FCAF87-YVPEJ112M4,FCAF87-YVPEJ132M4,FCAF87-YVPEJ160M4,FCAF87-YVPEJ180M4,FCAF87-YVPEJ200M4,FCAF87-YVPEJ71M4,FCAF87-YVPEJ80M4,FCAF87-YVPEJ90M4,MTPAF87-Y0.37KW,MTPAF87-Y0.55KW,MTPAF87-Y0.75KW,MTPAF87-Y1.1KW,MTPAF87-Y1.5KW,MTPAF87-Y100M4,MTPAF87-Y112M4,MTPAF87-Y11KW,MTPAF87-Y132M4,MTPAF87-Y15KW,MTPAF87-Y160M4,MTPAF87-Y18.5KW,MTPAF87-Y180M4,MTPAF87-Y2.2KW,MTPAF87-Y200M4,MTPAF87-Y22KW,MTPAF87-Y3KW,MTPAF87-Y4KW,MTPAF87-Y5.5KW,MTPAF87-Y7.5KW,MTPAF87-Y71M4,MTPAF87-Y80M4,MTPAF87-Y90M4,MTPAF87-YEJ100M4,MTPAF87-YEJ112M4,MTPAF87-YEJ132M4,MTPAF87-YEJ160M4,MTPAF87-YEJ180M4,MTPAF87-YEJ200M4,MTPAF87-YEJ71M4,MTPAF87-YEJ80M4,MTPAF87-YEJ90M4,MTPAF87-YS100M4,MTPAF87-YS112M4,MTPAF87-YS132M4,MTPAF87-YS160M4,MTPAF87-YS180M4,MTPAF87-YS200M4,MTPAF87-YS71M4,MTPAF87-YS80M4,MTPAF87-YS90M4,MTPAF87-YVP100M4,MTPAF87-YVP112M4,MTPAF87-YVP132M4,MTPAF87-YVP160M4,MTPAF87-YVP180M4,MTPAF87-YVP200M4,MTPAF87-YVP71M4,MTPAF87-YVP80M4,MTPAF87-YVP90M4,MTPAF87-YVPEJ100M4,MTPAF87-YVPEJ112M4,MTPAF87-YVPEJ132M4,MTPAF87-YVPEJ160M4,MTPAF87-YVPEJ180M4,MTPAF87-YVPEJ200M4,MTPAF87-YVPEJ71M4,MTPAF87-YVPEJ80M4,MTPAF87-YVPEJ90M4,WXFAF87-WSS0.37KW,WXFAF87-WSS0.55KW,WXFAF87-WSS0.75KW,WXFAF87-WSS1.1KW,WXFAF87-WSS1.5KW,WXFAF87-WSS100M4,WXFAF87-WSS112M4,WXFAF87-WSS11KW,WXFAF87-WSS132M4,WXFAF87-WSS15KW,WXFAF87-WSS160M4,WXFAF87-WSS18.5KW,WXFAF87-WSS180M4,WXFAF87-WSS2.2KW,WXFAF87-WSS200M4,WXFAF87-WSS22KW,WXFAF87-WSS3KW,WXFAF87-WSS4KW,WXFAF87-WSS5.5KW,WXFAF87-WSS7.5KW,WXFAF87-WSS71M4,WXFAF87-WSS80M4,WXFAF87-WSS90M4,WXFAF87-WSSB100M4,WXFAF87-WSSB112M4,WXFAF87-WSSB132M4,WXFAF87-WSSB160M4,WXFAF87-WSSB180M4,WXFAF87-WSSB200M4,WXFAF87-WSSB71M4,WXFAF87-WSSB80M4,WXFAF87-WSSB90M4,WXFAF87-WSSVP100M4,WXFAF87-WSSVP112M4,WXFAF87-WSSVP132M4,WXFAF87-WSSVP160M4,WXFAF87-WSSVP180M4,WXFAF87-WSSVP200M4,WXFAF87-WSSVP71M4,WXFAF87-WSSVP80M4,WXFAF87-WSSVP90M4,WXFAF87-WSSVPB100M4,WXFAF87-WSSVPB112M4,WXFAF87-WSSVPB132M4,WXFAF87-WSSVPB160M4,WXFAF87-WSSVPB180M4,WXFAF87-WSSVPB200M4,WXFAF87-WSSVPB71M4,WXFAF87-WSSVPB80M4,WXFAF87-WSSVPB90M4。平行軸斜齒輪減速機

FAF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.8x29ft.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F87減速機
