KA87減速機重量：KA87減速機重量84公斤，KA87減速機與電機重量分別如下

KA87減速機與0.75KW電機重量100公斤，KA87減速機與1.1KW電機重量104公斤，KA87減速機與1.5KW電機重量107公斤，KA87減速機與2.2KW電機重量116公斤，KA87減速機與3KW電機重量120公斤，KA87減速機與4KW電機重量131公斤，KA87減速機與5.5KW電機重量144公斤，KA87減速機與7.5KW電機重量157公斤，KA87減速機與11KW電機重量256公斤，KA87減速機與15KW電機重量219公斤，KA87減速機與18.5KW電機重量256公斤，KA87減速機與22KW電機重量269公斤。

KA87減速機加油量：可加齒輪油

KA87減速機M3方式安裝加8.8L，KA87減速機M2方式安裝加8.2L，KA87減速機M1方式安裝加3.7L，KA87減速機M4方式安裝加11.1L，KA87減速機M5方式安裝加8L，KA87減速機M6方式安裝加8L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

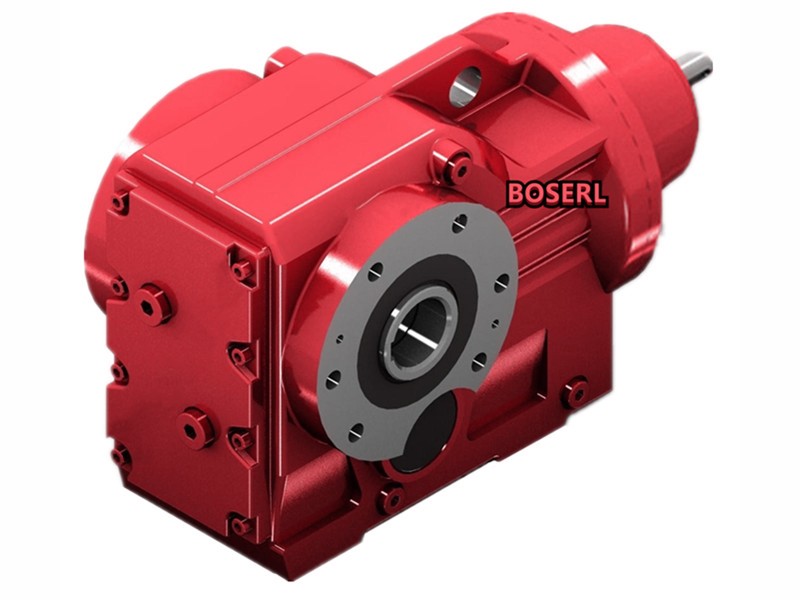

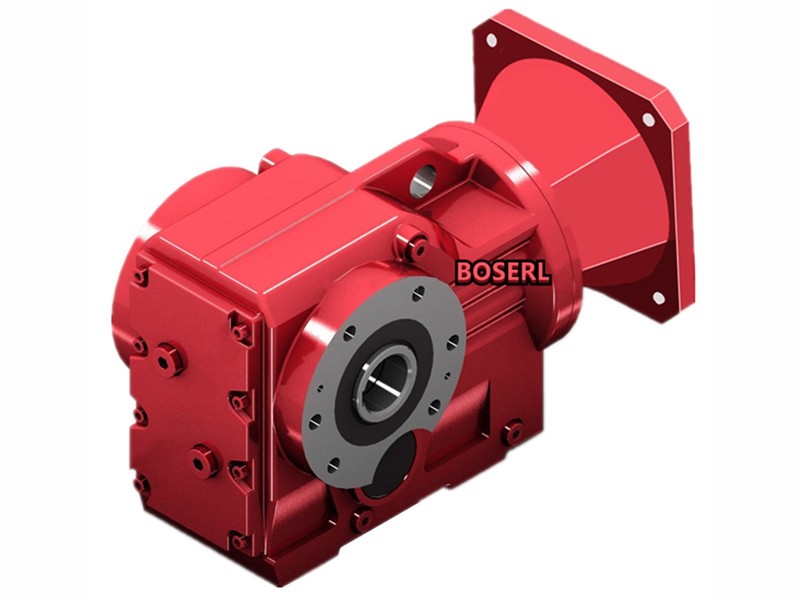

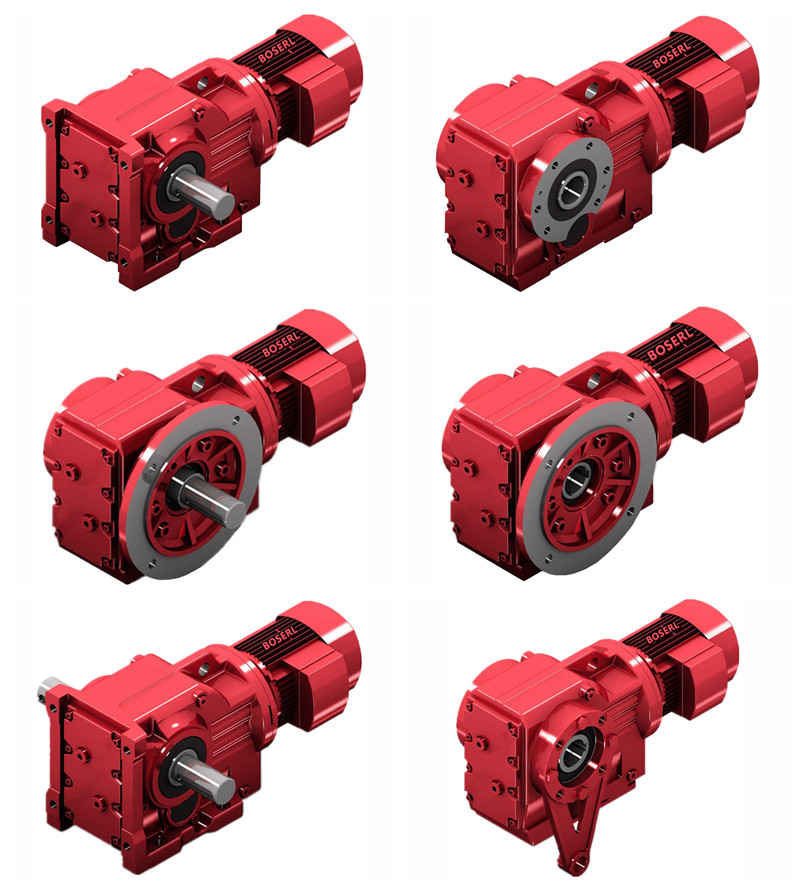

KA87減速機實物圖：圖一為KA87臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K87臥式方式安裝螺旋錐齒輪減速電機，圖三為KF87立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF87立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA87減速機型號表示方法：

KA87減速機型號結構KA87-B15KW-4P-減速比-安裝方式-接線盒位置。

KA87減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA87，K87，KF87，KAF87減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。

KA87減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

K87減速機參數：

KA87減速機減速比197.37比,174.19比,164.34比,147.32比,126.91比,115.82比,102.71比,86.34比,79.34比,70.46比,63比,56.64比,49.16比,44.02比,36.52比,31.39比,27.88比,24.92比,22.41比,19.45比,17.42比,16比,14.45比,12.56比,11.17比,10比,8.29比,7.21比

KA87減速機輸出轉數7.1轉,8轉,8.5轉,9.5轉,11轉,12轉,14轉,16轉,18轉,20轉,22轉,25轉,28轉,32轉,38轉,45轉,50轉,56轉,62轉,72轉,80轉,88轉,97轉,111轉,125轉,140轉,169轉,194轉（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）。

KA87減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA87與0.75KW，KA87與1.1KW，KA87與1.5KW，KA87與2.2KW，KA87與3KW，KA87與4KW，KA87與5.5KW，KA87與7.5KW，KA87與11KW，KA87與15KW，KA87與18.5KW，KA87與22KW。

KA87減速機輸出扭矩1300N.m,1400N.m,1500N.m,1800N.m,2000N.m,2100N.m,2200N.m,2300N.m,2500N.m,2600N.m,2700N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）。

KA87減速機安裝尺寸：高338*寬230*長390

KA87減速機型號：KA87AQA80,KA87AQA100,KA87AQA115,KA87AQA140,KA87AQA160,KA87AQA190,KA87AQH80,KA87AQH100,KA87AQH115,KA87AQH140,KA87AQH160,KA87AQH190,JRTKA87-Y0.37KW,JRTKA87-Y0.55KW,JRTKA87-Y0.75KW,JRTKA87-Y1.1KW,JRTKA87-Y1.5KW,JRTKA87-Y100M4,JRTKA87-Y112M4,JRTKA87-Y11KW,JRTKA87-Y132M4,JRTKA87-Y15KW,JRTKA87-Y160M4,JRTKA87-Y18.5KW,JRTKA87-Y180M4,JRTKA87-Y2.2KW,JRTKA87-Y200M4,JRTKA87-Y22KW,JRTKA87-Y3KW,JRTKA87-Y4KW,JRTKA87-Y5.5KW,JRTKA87-Y7.5KW,JRTKA87-Y71M4,JRTKA87-Y80M4,JRTKA87-Y90M4,JRTKA87-YEJ100M4,JRTKA87-YEJ112M4,JRTKA87-YEJ132M4,JRTKA87-YEJ160M4,JRTKA87-YEJ180M4,JRTKA87-YEJ200M4,JRTKA87-YEJ71M4,JRTKA87-YEJ80M4,JRTKA87-YEJ90M4,JRTKA87-YS100M4,JRTKA87-YS112M4,JRTKA87-YS132M4,JRTKA87-YS160M4,JRTKA87-YS180M4,JRTKA87-YS200M4,JRTKA87-YS71M4,JRTKA87-YS80M4,JRTKA87-YS90M4,JRTKA87-YVP100M4,JRTKA87-YVP112M4,JRTKA87-YVP132M4,JRTKA87-YVP160M4,JRTKA87-YVP180M4,JRTKA87-YVP200M4,JRTKA87-YVP71M4,JRTKA87-YVP80M4,JRTKA87-YVP90M4,JRTKA87-YVPEJ100M4,JRTKA87-YVPEJ112M4,JRTKA87-YVPEJ132M4,JRTKA87-YVPEJ160M4,JRTKA87-YVPEJ180M4,JRTKA87-YVPEJ200M4,JRTKA87-YVPEJ71M4,JRTKA87-YVPEJ80M4,JRTKA87-YVPEJ90M4,EWKA87-Y0.37KW,EWKA87-Y0.55KW,EWKA87-Y0.75KW,EWKA87-Y1.1KW,EWKA87-Y1.5KW,EWKA87-Y100M4,EWKA87-Y112M4,EWKA87-Y11KW,EWKA87-Y132M4,EWKA87-Y15KW,EWKA87-Y160M4,EWKA87-Y18.5KW,EWKA87-Y180M4,EWKA87-Y2.2KW,EWKA87-Y200M4,EWKA87-Y22KW,EWKA87-Y3KW,EWKA87-Y4KW,EWKA87-Y5.5KW,EWKA87-Y7.5KW,EWKA87-Y71M4,EWKA87-Y80M4,EWKA87-Y90M4,EWKA87-YEJ100M4,EWKA87-YEJ112M4,EWKA87-YEJ132M4,EWKA87-YEJ160M4,EWKA87-YEJ180M4,EWKA87-YEJ200M4,EWKA87-YEJ71M4,EWKA87-YEJ80M4,EWKA87-YEJ90M4,EWKA87-YS100M4,EWKA87-YS112M4,EWKA87-YS132M4,EWKA87-YS160M4,EWKA87-YS180M4,EWKA87-YS200M4,EWKA87-YS71M4,EWKA87-YS80M4,EWKA87-YS90M4,EWKA87-YVP100M4,EWKA87-YVP112M4,EWKA87-YVP132M4,EWKA87-YVP160M4,EWKA87-YVP180M4,EWKA87-YVP200M4,EWKA87-YVP71M4,EWKA87-YVP80M4,EWKA87-YVP90M4,EWKA87-YVPEJ100M4,EWKA87-YVPEJ112M4,EWKA87-YVPEJ132M4,EWKA87-YVPEJ160M4,EWKA87-YVPEJ180M4,EWKA87-YVPEJ200M4,EWKA87-YVPEJ71M4,EWKA87-YVPEJ80M4,EWKA87-YVPEJ90M4,SLKA87-Y0.37KW,SLKA87-Y0.55KW,SLKA87-Y0.75KW,SLKA87-Y1.1KW,SLKA87-Y1.5KW,SLKA87-Y100M4,SLKA87-Y112M4,SLKA87-Y11KW,SLKA87-Y132M4,SLKA87-Y15KW,SLKA87-Y160M4,SLKA87-Y18.5KW,SLKA87-Y180M4,SLKA87-Y2.2KW,SLKA87-Y200M4,SLKA87-Y22KW,SLKA87-Y3KW,SLKA87-Y4KW,SLKA87-Y5.5KW,SLKA87-Y7.5KW,SLKA87-Y71M4,SLKA87-Y80M4,SLKA87-Y90M4,SLKA87-YEJ100M4,SLKA87-YEJ112M4,SLKA87-YEJ132M4,SLKA87-YEJ160M4,SLKA87-YEJ180M4,SLKA87-YEJ200M4,SLKA87-YEJ71M4,SLKA87-YEJ80M4,SLKA87-YEJ90M4,SLKA87-YS100M4,SLKA87-YS112M4,SLKA87-YS132M4,SLKA87-YS160M4,SLKA87-YS180M4,SLKA87-YS200M4,SLKA87-YS71M4,SLKA87-YS80M4,SLKA87-YS90M4,SLKA87-YVP100M4,SLKA87-YVP112M4,SLKA87-YVP132M4,SLKA87-YVP160M4,SLKA87-YVP180M4,SLKA87-YVP200M4,SLKA87-YVP71M4,SLKA87-YVP80M4,SLKA87-YVP90M4,SLKA87-YVPEJ100M4,SLKA87-YVPEJ112M4,SLKA87-YVPEJ132M4,SLKA87-YVPEJ160M4,SLKA87-YVPEJ180M4,SLKA87-YVPEJ200M4,SLKA87-YVPEJ71M4,SLKA87-YVPEJ80M4,SLKA87-YVPEJ90M4,DSZKA87-Y0.37KW,DSZKA87-Y0.55KW,DSZKA87-Y0.75KW,DSZKA87-Y1.1KW,DSZKA87-Y1.5KW,DSZKA87-Y100M4,DSZKA87-Y112M4,DSZKA87-Y11KW,DSZKA87-Y132M4,DSZKA87-Y15KW,DSZKA87-Y160M4,DSZKA87-Y18.5KW,DSZKA87-Y180M4,DSZKA87-Y2.2KW,DSZKA87-Y200M4,DSZKA87-Y22KW,DSZKA87-Y3KW,DSZKA87-Y4KW,DSZKA87-Y5.5KW,DSZKA87-Y7.5KW,DSZKA87-Y71M4,DSZKA87-Y80M4,DSZKA87-Y90M4,DSZKA87-YEJ100M4,DSZKA87-YEJ112M4,DSZKA87-YEJ132M4,DSZKA87-YEJ160M4,DSZKA87-YEJ180M4,DSZKA87-YEJ200M4,DSZKA87-YEJ71M4,DSZKA87-YEJ80M4,DSZKA87-YEJ90M4,DSZKA87-YS100M4,DSZKA87-YS112M4,DSZKA87-YS132M4,DSZKA87-YS160M4,DSZKA87-YS180M4,DSZKA87-YS200M4,DSZKA87-YS71M4,DSZKA87-YS80M4,DSZKA87-YS90M4,DSZKA87-YVP100M4,DSZKA87-YVP112M4,DSZKA87-YVP132M4,DSZKA87-YVP160M4,DSZKA87-YVP180M4,DSZKA87-YVP200M4,DSZKA87-YVP71M4,DSZKA87-YVP80M4,DSZKA87-YVP90M4,DSZKA87-YVPEJ100M4,DSZKA87-YVPEJ112M4,DSZKA87-YVPEJ132M4,DSZKA87-YVPEJ160M4,DSZKA87-YVPEJ180M4,DSZKA87-YVPEJ200M4,DSZKA87-YVPEJ71M4,DSZKA87-YVPEJ80M4,DSZKA87-YVPEJ90M4,BKA87-Y0.37KW,BKA87-Y0.55KW,BKA87-Y0.75KW,BKA87-Y1.1KW,BKA87-Y1.5KW,BKA87-Y100M4,BKA87-Y112M4,BKA87-Y11KW,BKA87-Y132M4,BKA87-Y15KW,BKA87-Y160M4,BKA87-Y18.5KW,BKA87-Y180M4,BKA87-Y2.2KW,BKA87-Y200M4,BKA87-Y22KW,BKA87-Y3KW,BKA87-Y4KW,BKA87-Y5.5KW,BKA87-Y7.5KW,BKA87-Y71M4,BKA87-Y80M4,BKA87-Y90M4,BKA87-YEJ100M4,BKA87-YEJ112M4,BKA87-YEJ132M4,BKA87-YEJ160M4,BKA87-YEJ180M4,BKA87-YEJ200M4,BKA87-YEJ71M4,BKA87-YEJ80M4,BKA87-YEJ90M4,BKA87-YS100M4,BKA87-YS112M4,BKA87-YS132M4,BKA87-YS160M4,BKA87-YS180M4,BKA87-YS200M4,BKA87-YS71M4,BKA87-YS80M4,BKA87-YS90M4,BKA87-YVP100M4,BKA87-YVP112M4,BKA87-YVP132M4,BKA87-YVP160M4,BKA87-YVP180M4,BKA87-YVP200M4,BKA87-YVP71M4,BKA87-YVP80M4,BKA87-YVP90M4,BKA87-YVPEJ100M4,BKA87-YVPEJ112M4,BKA87-YVPEJ132M4,BKA87-YVPEJ160M4,BKA87-YVPEJ180M4,BKA87-YVPEJ200M4,BKA87-YVPEJ71M4,BKA87-YVPEJ80M4,BKA87-YVPEJ90M4,GKA87-Y0.37KW,GKA87-Y0.55KW,GKA87-Y0.75KW,GKA87-Y1.1KW,GKA87-Y1.5KW,GKA87-Y100M4,GKA87-Y112M4,GKA87-Y11KW,GKA87-Y132M4,GKA87-Y15KW,GKA87-Y160M4,GKA87-Y18.5KW,GKA87-Y180M4,GKA87-Y2.2KW,GKA87-Y200M4,GKA87-Y22KW,GKA87-Y3KW,GKA87-Y4KW,GKA87-Y5.5KW,GKA87-Y7.5KW,GKA87-Y71M4,GKA87-Y80M4,GKA87-Y90M4,GKA87-YEJ100M4,GKA87-YEJ112M4,GKA87-YEJ132M4,GKA87-YEJ160M4,GKA87-YEJ180M4,GKA87-YEJ200M4,GKA87-YEJ71M4,GKA87-YEJ80M4,GKA87-YEJ90M4,GKA87-YS100M4,GKA87-YS112M4,GKA87-YS132M4,GKA87-YS160M4,GKA87-YS180M4,GKA87-YS200M4,GKA87-YS71M4,GKA87-YS80M4,GKA87-YS90M4,GKA87-YVP100M4,GKA87-YVP112M4,GKA87-YVP132M4,GKA87-YVP160M4,GKA87-YVP180M4,GKA87-YVP200M4,GKA87-YVP71M4,GKA87-YVP80M4,GKA87-YVP90M4,GKA87-YVPEJ100M4,GKA87-YVPEJ112M4,GKA87-YVPEJ132M4,GKA87-YVPEJ160M4,GKA87-YVPEJ180M4,GKA87-YVPEJ200M4,GKA87-YVPEJ71M4,GKA87-YVPEJ80M4,GKA87-YVPEJ90M4,KCA87-Y0.37KW,KCA87-Y0.55KW,KCA87-Y0.75KW,KCA87-Y1.1KW,KCA87-Y1.5KW,KCA87-Y100M4,KCA87-Y112M4,KCA87-Y11KW,KCA87-Y132M4,KCA87-Y15KW,KCA87-Y160M4,KCA87-Y18.5KW,KCA87-Y180M4,KCA87-Y2.2KW,KCA87-Y200M4,KCA87-Y22KW,KCA87-Y3KW,KCA87-Y4KW,KCA87-Y5.5KW,KCA87-Y7.5KW,KCA87-Y71M4,KCA87-Y80M4,KCA87-Y90M4,KCA87-YEJ100M4,KCA87-YEJ112M4,KCA87-YEJ132M4,KCA87-YEJ160M4,KCA87-YEJ180M4,KCA87-YEJ200M4,KCA87-YEJ71M4,KCA87-YEJ80M4,KCA87-YEJ90M4,KCA87-YS100M4,KCA87-YS112M4,KCA87-YS132M4,KCA87-YS160M4,KCA87-YS180M4,KCA87-YS200M4,KCA87-YS71M4,KCA87-YS80M4,KCA87-YS90M4,KCA87-YVP100M4,KCA87-YVP112M4,KCA87-YVP132M4,KCA87-YVP160M4,KCA87-YVP180M4,KCA87-YVP200M4,KCA87-YVP71M4,KCA87-YVP80M4,KCA87-YVP90M4,KCA87-YVPEJ100M4,KCA87-YVPEJ112M4,KCA87-YVPEJ132M4,KCA87-YVPEJ160M4,KCA87-YVPEJ180M4,KCA87-YVPEJ200M4,KCA87-YVPEJ71M4,KCA87-YVPEJ80M4,KCA87-YVPEJ90M4,MTJA87-Y0.37KW,MTJA87-Y0.55KW,MTJA87-Y0.75KW,MTJA87-Y1.1KW,MTJA87-Y1.5KW,MTJA87-Y100M4,MTJA87-Y112M4,MTJA87-Y11KW,MTJA87-Y132M4,MTJA87-Y15KW,MTJA87-Y160M4,MTJA87-Y18.5KW,MTJA87-Y180M4,MTJA87-Y2.2KW,MTJA87-Y200M4,MTJA87-Y22KW,MTJA87-Y3KW,MTJA87-Y4KW,MTJA87-Y5.5KW,MTJA87-Y7.5KW,MTJA87-Y71M4,MTJA87-Y80M4,MTJA87-Y90M4,MTJA87-YEJ100M4,MTJA87-YEJ112M4,MTJA87-YEJ132M4,MTJA87-YEJ160M4,MTJA87-YEJ180M4,MTJA87-YEJ200M4,MTJA87-YEJ71M4,MTJA87-YEJ80M4,MTJA87-YEJ90M4,MTJA87-YS100M4,MTJA87-YS112M4,MTJA87-YS132M4,MTJA87-YS160M4,MTJA87-YS180M4,MTJA87-YS200M4,MTJA87-YS71M4,MTJA87-YS80M4,MTJA87-YS90M4,MTJA87-YVP100M4,MTJA87-YVP112M4,MTJA87-YVP132M4,MTJA87-YVP160M4,MTJA87-YVP180M4,MTJA87-YVP200M4,MTJA87-YVP71M4,MTJA87-YVP80M4,MTJA87-YVP90M4,MTJA87-YVPEJ100M4,MTJA87-YVPEJ112M4,MTJA87-YVPEJ132M4,MTJA87-YVPEJ160M4,MTJA87-YVPEJ180M4,MTJA87-YVPEJ200M4,MTJA87-YVPEJ71M4,MTJA87-YVPEJ80M4,MTJA87-YVPEJ90M4,WXKA87-WSS0.37KW,WXKA87-WSS0.55KW,WXKA87-WSS0.75KW,WXKA87-WSS1.1KW,WXKA87-WSS1.5KW,WXKA87-WSS100M4,WXKA87-WSS112M4,WXKA87-WSS11KW,WXKA87-WSS132M4,WXKA87-WSS15KW,WXKA87-WSS160M4,WXKA87-WSS18.5KW,WXKA87-WSS180M4,WXKA87-WSS2.2KW,WXKA87-WSS200M4,WXKA87-WSS22KW,WXKA87-WSS3KW,WXKA87-WSS4KW,WXKA87-WSS5.5KW,WXKA87-WSS7.5KW,WXKA87-WSS71M4,WXKA87-WSS80M4,WXKA87-WSS90M4,WXKA87-WSSB100M4,WXKA87-WSSB112M4,WXKA87-WSSB132M4,WXKA87-WSSB160M4,WXKA87-WSSB180M4,WXKA87-WSSB200M4,WXKA87-WSSB71M4,WXKA87-WSSB80M4,WXKA87-WSSB90M4,WXKA87-WSSVP100M4,WXKA87-WSSVP112M4,WXKA87-WSSVP132M4,WXKA87-WSSVP160M4,WXKA87-WSSVP180M4,WXKA87-WSSVP200M4,WXKA87-WSSVP71M4,WXKA87-WSSVP80M4,WXKA87-WSSVP90M4,WXKA87-WSSVPB100M4,WXKA87-WSSVPB112M4,WXKA87-WSSVPB132M4,WXKA87-WSSVPB160M4,WXKA87-WSSVPB180M4,WXKA87-WSSVPB200M4,WXKA87-WSSVPB71M4,WXKA87-WSSVPB80M4,WXKA87-WSSVPB90M4。空心軸減速機
