KAF57減速機與電機重量：

KAF57減速機與0.12KW電機重量35.5KG，KAF57減速機與0.18KW電機重量36KG，KAF57減速機與0.25KW電機重量40KG，KAF57減速機與0.37KW電機重量40.5KG，KAF57減速機與0.55KW電機重量45KG，KAF57減速機與0.75KW電機重量46KG，KAF57減速機與1.1KW電機重量50KG，KAF57減速機與1.5KW電機重量53KG，KAF57減速機與2.2KW電機重量62KG，KAF57減速機與3KW電機重量65KG，KAF57減速機與4KW電機重量76KG。直角減速機

KAF57減速機加油量：可加齒輪潤滑油

KAF57減速機M4安裝形式加3.15升，KAF57減速機M3安裝形式加2.4升，KAF57減速機M2安裝形式加2.2升，KAF57減速機M1安裝形式加1.2升，KAF57減速機M5安裝形式加2.5升，KAF57減速機M6安裝形式加2.3升。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

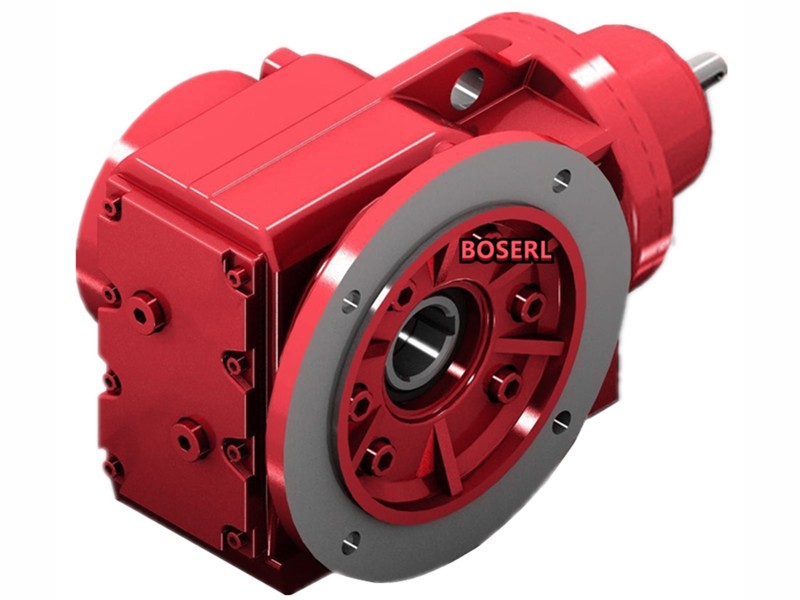

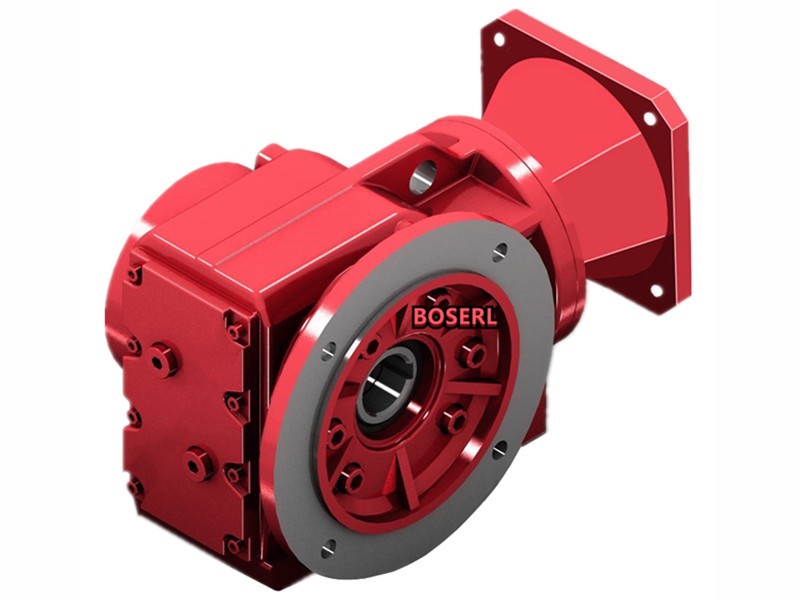

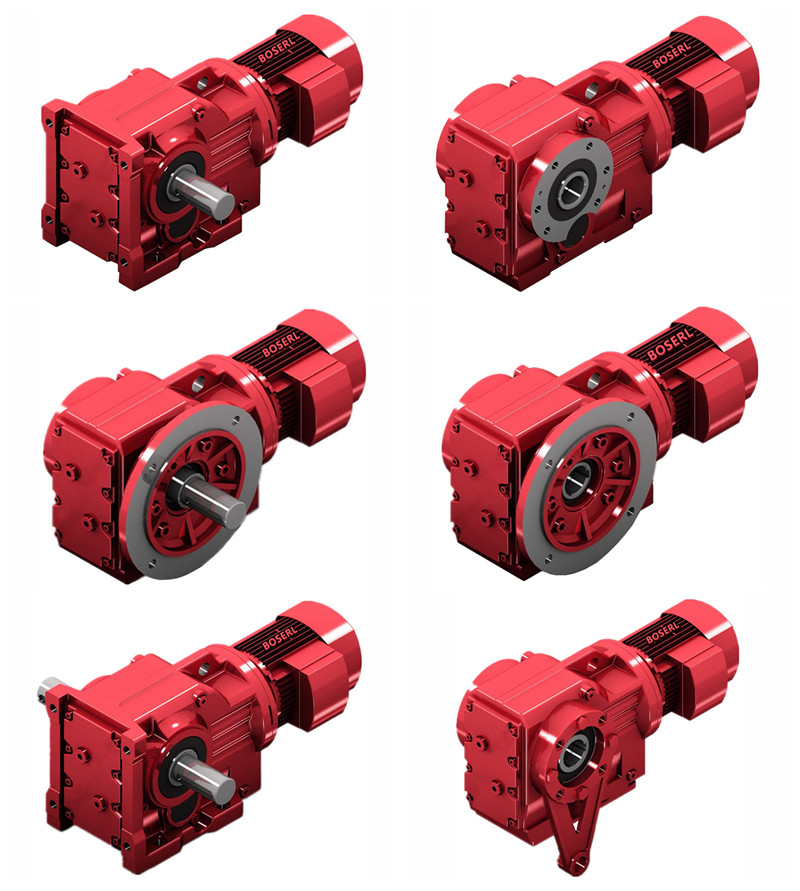

KAF57減速機實物圖：圖一為KAF57立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K57臥式安裝形式螺旋錐齒輪減速電機，圖三為KF57立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA57臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF57減速機型號表示方法：

KAF57減速機型號結構KAF57-B1.5KW-4P-減速比-安裝形式-接線盒位置。

KAF57減速機性能參數表結構說明：Input Configuration代表輸入與置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF57、K57、KF57、KA57減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。二級減速機

KAF57減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KAF57減速機參數：

KAF57減速機輸出扭矩7630N.m，7300N.m，6930N.m，3480N.m，6280N.m，5910N.m，5740N.m，5430N.m，5190N.m，5150N.m，4990N.m，4650N.m，4520N.m，4360N.m，4180N.m，3800N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF57減速機減速比145.14比，123.85比，108.29比，102.88比，90.26比，76.56比，69.12比，60.81比，57.42比，48.89比，44.43比，38.49比，35.70比，30.28比，27.34比，24.05比，22.71比，19.34比，17.57比，15.22比，13.25比，11.92比，11.26比，9.59比，8.71比，7.55比，6.57比，4.69比

KAF57減速機輸出轉數9.6轉，11轉，13轉，14轉，16轉，18轉，20轉，23轉，24轉，29轉，32轉，36轉，39轉，46轉，51轉，58轉，62轉，72轉，80轉，92轉，106轉，117轉，124轉，146轉，161轉，185轉，213轉，299轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF57減速機電機可與單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KAF57與0.12KW，KAF57與0.18KW，KAF57與0.25KW，KAF57與0.37KW，KAF57與0.55KW，KAF57與0.75KW，KAF57與1.1KW，KAF57與1.5KW，KAF57與2.2KW，KAF57與3KW，KAF57與4KW。

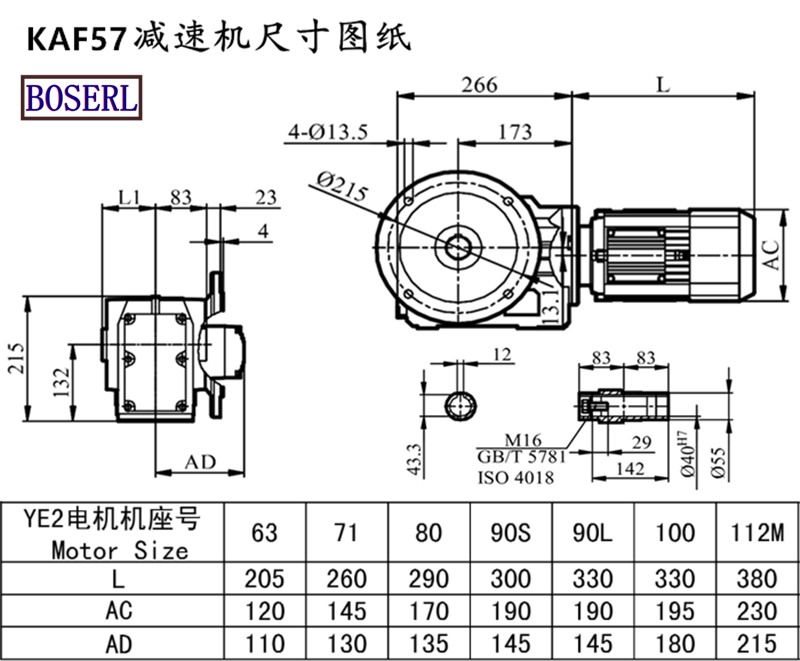

KAF57減速機外觀尺寸：輸出孔直徑Φ40+鍵3.3（可定做），高215*寬186.5（帶輸出法蘭）*長266

KAF57減速機型號：KAF57AQA80,KAF57AQA100,KAF57AQA115,KAF57AQA140,KAF57AQA160,KAF57AQA190,KAF57AQH80,KAF57AQH100,KAF57AQH115,KAF57AQH140,KAF57AQH160,KAF57AQH190,JRTKAF57-Y0.12KW,JRTKAF57-Y0.18KW,JRTKAF57-Y0.25KW,JRTKAF57-Y0.37KW,JRTKAF57-Y0.55KW,JRTKAF57-Y0.75KW,JRTKAF57-Y1.1KW,JRTKAF57-Y1.5KW,JRTKAF57-Y100M4,JRTKAF57-Y112M4,JRTKAF57-Y2.2KW,JRTKAF57-Y3KW,JRTKAF57-Y4KW,JRTKAF57-Y63M4,JRTKAF57-Y71M4,JRTKAF57-Y80M4,JRTKAF57-Y90M4,JRTKAF57-YEJ100M4,JRTKAF57-YEJ112M4,JRTKAF57-YEJ63M4,JRTKAF57-YEJ71M4,JRTKAF57-YEJ80M4,JRTKAF57-YEJ90M4,JRTKAF57-YS100M4,JRTKAF57-YS112M4,JRTKAF57-YS63M4,JRTKAF57-YS71M4,JRTKAF57-YS80M4,JRTKAF57-YS90M4,JRTKAF57-YVP100M4,JRTKAF57-YVP112M4,JRTKAF57-YVP63M4,JRTKAF57-YVP71M4,JRTKAF57-YVP80M4,JRTKAF57-YVP90M4,JRTKAF57-YVPEJ100M4,JRTKAF57-YVPEJ112M4,JRTKAF57-YVPEJ63M4,JRTKAF57-YVPEJ71M4,JRTKAF57-YVPEJ80M4,JRTKAF57-YVPEJ90M4,EWKAF57-Y0.12KW,EWKAF57-Y0.18KW,EWKAF57-Y0.25KW,EWKAF57-Y0.37KW,EWKAF57-Y0.55KW,EWKAF57-Y0.75KW,EWKAF57-Y1.1KW,EWKAF57-Y1.5KW,EWKAF57-Y100M4,EWKAF57-Y112M4,EWKAF57-Y2.2KW,EWKAF57-Y3KW,EWKAF57-Y4KW,EWKAF57-Y63M4,EWKAF57-Y71M4,EWKAF57-Y80M4,EWKAF57-Y90M4,EWKAF57-YEJ100M4,EWKAF57-YEJ112M4,EWKAF57-YEJ63M4,EWKAF57-YEJ71M4,EWKAF57-YEJ80M4,EWKAF57-YEJ90M4,EWKAF57-YS100M4,EWKAF57-YS112M4,EWKAF57-YS63M4,EWKAF57-YS71M4,EWKAF57-YS80M4,EWKAF57-YS90M4,EWKAF57-YVP100M4,EWKAF57-YVP112M4,EWKAF57-YVP63M4,EWKAF57-YVP71M4,EWKAF57-YVP80M4,EWKAF57-YVP90M4,EWKAF57-YVPEJ100M4,EWKAF57-YVPEJ112M4,EWKAF57-YVPEJ63M4,EWKAF57-YVPEJ71M4,EWKAF57-YVPEJ80M4,EWKAF57-YVPEJ90M4,SLKAF57-Y0.12KW,SLKAF57-Y0.18KW,SLKAF57-Y0.25KW,SLKAF57-Y0.37KW,SLKAF57-Y0.55KW,SLKAF57-Y0.75KW,SLKAF57-Y1.1KW,SLKAF57-Y1.5KW,SLKAF57-Y100M4,SLKAF57-Y112M4,SLKAF57-Y2.2KW,SLKAF57-Y3KW,SLKAF57-Y4KW,SLKAF57-Y63M4,SLKAF57-Y71M4,SLKAF57-Y80M4,SLKAF57-Y90M4,SLKAF57-YEJ100M4,SLKAF57-YEJ112M4,SLKAF57-YEJ63M4,SLKAF57-YEJ71M4,SLKAF57-YEJ80M4,SLKAF57-YEJ90M4,SLKAF57-YS100M4,SLKAF57-YS112M4,SLKAF57-YS63M4,SLKAF57-YS71M4,SLKAF57-YS80M4,SLKAF57-YS90M4,SLKAF57-YVP100M4,SLKAF57-YVP112M4,SLKAF57-YVP63M4,SLKAF57-YVP71M4,SLKAF57-YVP80M4,SLKAF57-YVP90M4,SLKAF57-YVPEJ100M4,SLKAF57-YVPEJ112M4,SLKAF57-YVPEJ63M4,SLKAF57-YVPEJ71M4,SLKAF57-YVPEJ80M4,SLKAF57-YVPEJ90M4,DSZKAF57-Y0.12KW,DSZKAF57-Y0.18KW,DSZKAF57-Y0.25KW,DSZKAF57-Y0.37KW,DSZKAF57-Y0.55KW,DSZKAF57-Y0.75KW,DSZKAF57-Y1.1KW,DSZKAF57-Y1.5KW,DSZKAF57-Y100M4,DSZKAF57-Y112M4,DSZKAF57-Y2.2KW,DSZKAF57-Y3KW,DSZKAF57-Y4KW,DSZKAF57-Y63M4,DSZKAF57-Y71M4,DSZKAF57-Y80M4,DSZKAF57-Y90M4,DSZKAF57-YEJ100M4,DSZKAF57-YEJ112M4,DSZKAF57-YEJ63M4,DSZKAF57-YEJ71M4,DSZKAF57-YEJ80M4,DSZKAF57-YEJ90M4,DSZKAF57-YS100M4,DSZKAF57-YS112M4,DSZKAF57-YS63M4,DSZKAF57-YS71M4,DSZKAF57-YS80M4,DSZKAF57-YS90M4,DSZKAF57-YVP100M4,DSZKAF57-YVP112M4,DSZKAF57-YVP63M4,DSZKAF57-YVP71M4,DSZKAF57-YVP80M4,DSZKAF57-YVP90M4,DSZKAF57-YVPEJ100M4,DSZKAF57-YVPEJ112M4,DSZKAF57-YVPEJ63M4,DSZKAF57-YVPEJ71M4,DSZKAF57-YVPEJ80M4,DSZKAF57-YVPEJ90M4,BKAF57-Y0.12KW,BKAF57-Y0.18KW,BKAF57-Y0.25KW,BKAF57-Y0.37KW,BKAF57-Y0.55KW,BKAF57-Y0.75KW,BKAF57-Y1.1KW,BKAF57-Y1.5KW,BKAF57-Y100M4,BKAF57-Y112M4,BKAF57-Y2.2KW,BKAF57-Y3KW,BKAF57-Y4KW,BKAF57-Y63M4,BKAF57-Y71M4,BKAF57-Y80M4,BKAF57-Y90M4,BKAF57-YEJ100M4,BKAF57-YEJ112M4,BKAF57-YEJ63M4,BKAF57-YEJ71M4,BKAF57-YEJ80M4,BKAF57-YEJ90M4,BKAF57-YS100M4,BKAF57-YS112M4,BKAF57-YS63M4,BKAF57-YS71M4,BKAF57-YS80M4,BKAF57-YS90M4,BKAF57-YVP100M4,BKAF57-YVP112M4,BKAF57-YVP63M4,BKAF57-YVP71M4,BKAF57-YVP80M4,BKAF57-YVP90M4,BKAF57-YVPEJ100M4,BKAF57-YVPEJ112M4,BKAF57-YVPEJ63M4,BKAF57-YVPEJ71M4,BKAF57-YVPEJ80M4,BKAF57-YVPEJ90M4,GKAF57-Y0.12KW,GKAF57-Y0.18KW,GKAF57-Y0.25KW,GKAF57-Y0.37KW,GKAF57-Y0.55KW,GKAF57-Y0.75KW,GKAF57-Y1.1KW,GKAF57-Y1.5KW,GKAF57-Y100M4,GKAF57-Y112M4,GKAF57-Y2.2KW,GKAF57-Y3KW,GKAF57-Y4KW,GKAF57-Y63M4,GKAF57-Y71M4,GKAF57-Y80M4,GKAF57-Y90M4,GKAF57-YEJ100M4,GKAF57-YEJ112M4,GKAF57-YEJ63M4,GKAF57-YEJ71M4,GKAF57-YEJ80M4,GKAF57-YEJ90M4,GKAF57-YS100M4,GKAF57-YS112M4,GKAF57-YS63M4,GKAF57-YS71M4,GKAF57-YS80M4,GKAF57-YS90M4,GKAF57-YVP100M4,GKAF57-YVP112M4,GKAF57-YVP63M4,GKAF57-YVP71M4,GKAF57-YVP80M4,GKAF57-YVP90M4,GKAF57-YVPEJ100M4,GKAF57-YVPEJ112M4,GKAF57-YVPEJ63M4,GKAF57-YVPEJ71M4,GKAF57-YVPEJ80M4,GKAF57-YVPEJ90M4,KCAF57-Y0.12KW,KCAF57-Y0.18KW,KCAF57-Y0.25KW,KCAF57-Y0.37KW,KCAF57-Y0.55KW,KCAF57-Y0.75KW,KCAF57-Y1.1KW,KCAF57-Y1.5KW,KCAF57-Y100M4,KCAF57-Y112M4,KCAF57-Y2.2KW,KCAF57-Y3KW,KCAF57-Y4KW,KCAF57-Y63M4,KCAF57-Y71M4,KCAF57-Y80M4,KCAF57-Y90M4,KCAF57-YEJ100M4,KCAF57-YEJ112M4,KCAF57-YEJ63M4,KCAF57-YEJ71M4,KCAF57-YEJ80M4,KCAF57-YEJ90M4,KCAF57-YS100M4,KCAF57-YS112M4,KCAF57-YS63M4,KCAF57-YS71M4,KCAF57-YS80M4,KCAF57-YS90M4,KCAF57-YVP100M4,KCAF57-YVP112M4,KCAF57-YVP63M4,KCAF57-YVP71M4,KCAF57-YVP80M4,KCAF57-YVP90M4,KCAF57-YVPEJ100M4,KCAF57-YVPEJ112M4,KCAF57-YVPEJ63M4,KCAF57-YVPEJ71M4,KCAF57-YVPEJ80M4,KCAF57-YVPEJ90M4,MTJAF57-Y0.12KW,MTJAF57-Y0.18KW,MTJAF57-Y0.25KW,MTJAF57-Y0.37KW,MTJAF57-Y0.55KW,MTJAF57-Y0.75KW,MTJAF57-Y1.1KW,MTJAF57-Y1.5KW,MTJAF57-Y100M4,MTJAF57-Y112M4,MTJAF57-Y2.2KW,MTJAF57-Y3KW,MTJAF57-Y4KW,MTJAF57-Y63M4,MTJAF57-Y71M4,MTJAF57-Y80M4,MTJAF57-Y90M4,MTJAF57-YEJ100M4,MTJAF57-YEJ112M4,MTJAF57-YEJ63M4,MTJAF57-YEJ71M4,MTJAF57-YEJ80M4,MTJAF57-YEJ90M4,MTJAF57-YS100M4,MTJAF57-YS112M4,MTJAF57-YS63M4,MTJAF57-YS71M4,MTJAF57-YS80M4,MTJAF57-YS90M4,MTJAF57-YVP100M4,MTJAF57-YVP112M4,MTJAF57-YVP63M4,MTJAF57-YVP71M4,MTJAF57-YVP80M4,MTJAF57-YVP90M4,MTJAF57-YVPEJ100M4,MTJAF57-YVPEJ112M4,MTJAF57-YVPEJ63M4,MTJAF57-YVPEJ71M4,MTJAF57-YVPEJ80M4,MTJAF57-YVPEJ90M4,WXKAF57-WSS0.12KW,WXKAF57-WSS0.18KW,WXKAF57-WSS0.25KW,WXKAF57-WSS0.37KW,WXKAF57-WSS0.55KW,WXKAF57-WSS0.75KW,WXKAF57-WSS1.1KW,WXKAF57-WSS1.5KW,WXKAF57-WSS100M4,WXKAF57-WSS112M4,WXKAF57-WSS2.2KW,WXKAF57-WSS3KW,WXKAF57-WSS4KW,WXKAF57-WSS63M4,WXKAF57-WSS71M4,WXKAF57-WSS80M4,WXKAF57-WSS90M4,WXKAF57-WSSB100M4,WXKAF57-WSSB112M4,WXKAF57-WSSB63M4,WXKAF57-WSSB71M4,WXKAF57-WSSB80M4,WXKAF57-WSSB90M4,WXKAF57-WSSVP100M4,WXKAF57-WSSVP112M4,WXKAF57-WSSVP63M4,WXKAF57-WSSVP71M4,WXKAF57-WSSVP80M4,WXKAF57-WSSVP90M4,WXKAF57-WSSVPB100M4,WXKAF57-WSSVPB112M4,WXKAF57-WSSVPB63M4,WXKAF57-WSSVPB71M4,WXKAF57-WSSVPB80M4,WXKAF57-WSSVPB90M4。

KAF57減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.8x29ft.com/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K57減速機
