R97減速機重量：R97減速機重量101Kg，R97減速機配電機重量分別如下：

R97減速機配0.55KW電機重量116Kg,R97減速機配0.75KW電機重量117Kg,R97減速機配1.1KW電機重量121Kg,R97減速機配1.5KW電機重量124Kg,R97減速機配2.2KW電機重量133Kg,R97減速機配3KW電機重量136Kg,R97減速機配4KW電機重量147Kg,R97減速機配5.5KW電機重量161Kg,R97減速機配7.5KW電機重量174Kg,R97減速機配11KW電機重量216Kg,R97減速機配15KW電機重量236Kg,R97減速機配18.5KW電機重量273Kg,R97減速機配22KW電機重量286Kg,R97減速機配30KW電機重量354Kg,R97減速機配37KW電機重量401Kg。

R97減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R97減速機M1安裝加4.6/9.8升，R97減速機M2安裝加11.7/14升，R97減速機M3安裝加11.7升，R97減速機M4安裝加13.4升，R97減速機M5安裝加11.3升，R97減速機M6安裝加11.7升。

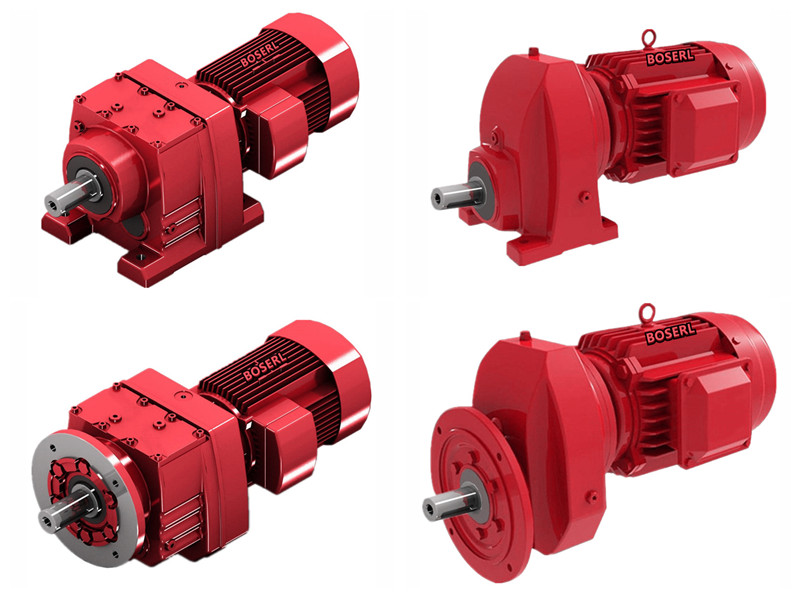

R97減速機實物圖：圖一為R97底腳安裝斜齒輪減速機，圖二RF97法蘭立式安裝斜齒輪減速機，圖三為RX97減速機不同心臥式底腳安裝，圖四為RXF97減速機不同心立式法蘭安裝。

R97減速機型號表示方法：

R97減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R97減速機型號結構R97-B37KW-4P-減速比-安裝方式-接線盒位置。

R97減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R97減速機結構圖：齒輪減速機

R97減速機參數：同軸減速機

R97減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R97配0.55KW,R97配0.75KW,R97配1.1KW,R97配1.5KW,R97配2.2KW,R97配3KW,R97配4KW,R97配5.5KW,R97配7.5KW,R97配11KW,R97配15KW,R97配18.5KW,R97配22KW,R97配30KW,R97配37KW。

R97減速機減速比4.5比,5.2比,6.21比,7.12比,8.39比,9.29比,10.83比,13.39比,14.62比,16.17比,18.24比,20.14比,22.37比,25.03比,27.19比,27.58比,32.05比,33.25比,37.13比,42.78比,47.58比,53.21比,59.92比,65.21比,72.17比,83.15比,92.48比,103.44比,116.48比,126.75比,150.78比,170.02比,186.3比,216.28比,241.25比,255.71比,289.74比。

R97減速機輸出轉速4.8轉,5.5轉,5.8轉,6.5轉,7.5轉,8.2轉,9.3轉,11轉,12轉,14轉,15轉,17轉,19轉,21轉,23轉,26轉,29轉,33轉,38轉,42轉,44轉,51轉,56轉,63轉,70轉,77轉,87轉,96轉,113轉,129轉,151轉,167轉,197轉,225轉,269轉,311轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R97減速機負載扭矩1630N.m,1780N.m,1890N.m,2000N.m,2030N.m,2090N.m,2190N.m,2300N.m,2400N.m,2500N.m,2560N.m,2610N.m,2670N.m,2720N.m,2830N.m,2890N.m,3000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

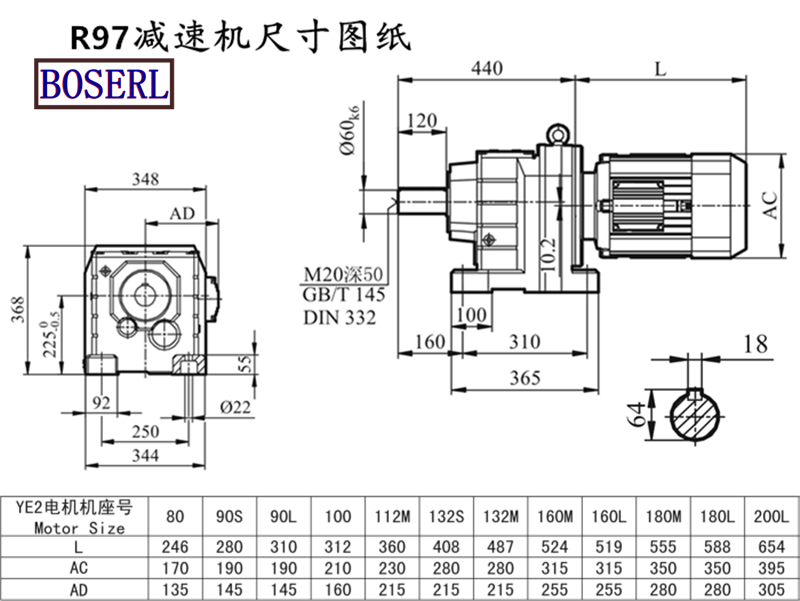

R97減速機尺寸圖紙：高368*寬344*長440（帶輸出軸）R系列減速機

R97減速機型號:R97AQA80,R97AQA100,R97AQA115,R97AQA140,R97AQA160,R97AQA190,R97AQH80,R97AQH100,R97AQH115,R97AQH140,R97AQH160,R97AQH190,JRTR97-Y0.55KW,JRTR97-Y0.75KW,JRTR97-Y1.1KW,JRTR97-Y1.5KW,JRTR97-Y100M4,JRTR97-Y112M4,JRTR97-Y11KW,JRTR97-Y132M4,JRTR97-Y15KW,JRTR97-Y160M4,JRTR97-Y18.5KW,JRTR97-Y180M4,JRTR97-Y2.2KW,JRTR97-Y200M4,JRTR97-Y22KW,JRTR97-Y30KW,JRTR97-Y3KW,JRTR97-Y4KW,JRTR97-Y5.5KW,JRTR97-Y7.5KW,JRTR97-Y80M4,JRTR97-Y90M4,JRTR97-YEJ100M4,JRTR97-YEJ112M4,JRTR97-YEJ132M4,JRTR97-YEJ160M4,JRTR97-YEJ180M4,JRTR97-YEJ200M4,JRTR97-YEJ80M4,JRTR97-YEJ90M4,JRTR97-YS100M4,JRTR97-YS112M4,JRTR97-YS132M4,JRTR97-YS160M4,JRTR97-YS180M4,JRTR97-YS200M4,JRTR97-YS80M4,JRTR97-YS90M4,JRTR97-YVP100M4,JRTR97-YVP112M4,JRTR97-YVP132M4,JRTR97-YVP160M4,JRTR97-YVP180M4,JRTR97-YVP200M4,JRTR97-YVP80M4,JRTR97-YVP90M4,JRTR97-YVPEJ100M4,JRTR97-YVPEJ112M4,JRTR97-YVPEJ132M4,JRTR97-YVPEJ160M4,JRTR97-YVPEJ180M4,JRTR97-YVPEJ200M4,JRTR97-YVPEJ80M4,JRTR97-YVPEJ90M4,EWR97-Y0.55KW,EWR97-Y0.75KW,EWR97-Y1.1KW,EWR97-Y1.5KW,EWR97-Y100M4,EWR97-Y112M4,EWR97-Y11KW,EWR97-Y132M4,EWR97-Y15KW,EWR97-Y160M4,EWR97-Y18.5KW,EWR97-Y180M4,EWR97-Y2.2KW,EWR97-Y200M4,EWR97-Y22KW,EWR97-Y30KW,EWR97-Y3KW,EWR97-Y4KW,EWR97-Y5.5KW,EWR97-Y7.5KW,EWR97-Y80M4,EWR97-Y90M4,EWR97-YEJ100M4,EWR97-YEJ112M4,EWR97-YEJ132M4,EWR97-YEJ160M4,EWR97-YEJ180M4,EWR97-YEJ200M4,EWR97-YEJ80M4,EWR97-YEJ90M4,EWR97-YS100M4,EWR97-YS112M4,EWR97-YS132M4,EWR97-YS160M4,EWR97-YS180M4,EWR97-YS200M4,EWR97-YS80M4,EWR97-YS90M4,EWR97-YVP100M4,EWR97-YVP112M4,EWR97-YVP132M4,EWR97-YVP160M4,EWR97-YVP180M4,EWR97-YVP200M4,EWR97-YVP80M4,EWR97-YVP90M4,EWR97-YVPEJ100M4,EWR97-YVPEJ112M4,EWR97-YVPEJ132M4,EWR97-YVPEJ160M4,EWR97-YVPEJ180M4,EWR97-YVPEJ200M4,EWR97-YVPEJ80M4,EWR97-YVPEJ90M4,SLR97-Y0.55KW,SLR97-Y0.75KW,SLR97-Y1.1KW,SLR97-Y1.5KW,SLR97-Y100M4,SLR97-Y112M4,SLR97-Y11KW,SLR97-Y132M4,SLR97-Y15KW,SLR97-Y160M4,SLR97-Y18.5KW,SLR97-Y180M4,SLR97-Y2.2KW,SLR97-Y200M4,SLR97-Y22KW,SLR97-Y30KW,SLR97-Y3KW,SLR97-Y4KW,SLR97-Y5.5KW,SLR97-Y7.5KW,SLR97-Y80M4,SLR97-Y90M4,SLR97-YEJ100M4,SLR97-YEJ112M4,SLR97-YEJ132M4,SLR97-YEJ160M4,SLR97-YEJ180M4,SLR97-YEJ200M4,SLR97-YEJ80M4,SLR97-YEJ90M4,SLR97-YS100M4,SLR97-YS112M4,SLR97-YS132M4,SLR97-YS160M4,SLR97-YS180M4,SLR97-YS200M4,SLR97-YS80M4,SLR97-YS90M4,SLR97-YVP100M4,SLR97-YVP112M4,SLR97-YVP132M4,SLR97-YVP160M4,SLR97-YVP180M4,SLR97-YVP200M4,SLR97-YVP80M4,SLR97-YVP90M4,SLR97-YVPEJ100M4,SLR97-YVPEJ112M4,SLR97-YVPEJ132M4,SLR97-YVPEJ160M4,SLR97-YVPEJ180M4,SLR97-YVPEJ200M4,SLR97-YVPEJ80M4,SLR97-YVPEJ90M4,DSZR97-Y0.55KW,DSZR97-Y0.75KW,DSZR97-Y1.1KW,DSZR97-Y1.5KW,DSZR97-Y100M4,DSZR97-Y112M4,DSZR97-Y11KW,DSZR97-Y132M4,DSZR97-Y15KW,DSZR97-Y160M4,DSZR97-Y18.5KW,DSZR97-Y180M4,DSZR97-Y2.2KW,DSZR97-Y200M4,DSZR97-Y22KW,DSZR97-Y30KW,DSZR97-Y3KW,DSZR97-Y4KW,DSZR97-Y5.5KW,DSZR97-Y7.5KW,DSZR97-Y80M4,DSZR97-Y90M4,DSZR97-YEJ100M4,DSZR97-YEJ112M4,DSZR97-YEJ132M4,DSZR97-YEJ160M4,DSZR97-YEJ180M4,DSZR97-YEJ200M4,DSZR97-YEJ80M4,DSZR97-YEJ90M4,DSZR97-YS100M4,DSZR97-YS112M4,DSZR97-YS132M4,DSZR97-YS160M4,DSZR97-YS180M4,DSZR97-YS200M4,DSZR97-YS80M4,DSZR97-YS90M4,DSZR97-YVP100M4,DSZR97-YVP112M4,DSZR97-YVP132M4,DSZR97-YVP160M4,DSZR97-YVP180M4,DSZR97-YVP200M4,DSZR97-YVP80M4,DSZR97-YVP90M4,DSZR97-YVPEJ100M4,DSZR97-YVPEJ112M4,DSZR97-YVPEJ132M4,DSZR97-YVPEJ160M4,DSZR97-YVPEJ180M4,DSZR97-YVPEJ200M4,DSZR97-YVPEJ80M4,DSZR97-YVPEJ90M4,BR97-Y0.55KW,BR97-Y0.75KW,BR97-Y1.1KW,BR97-Y1.5KW,BR97-Y100M4,BR97-Y112M4,BR97-Y11KW,BR97-Y132M4,BR97-Y15KW,BR97-Y160M4,BR97-Y18.5KW,BR97-Y180M4,BR97-Y2.2KW,BR97-Y200M4,BR97-Y22KW,BR97-Y30KW,BR97-Y3KW,BR97-Y4KW,BR97-Y5.5KW,BR97-Y7.5KW,BR97-Y80M4,BR97-Y90M4,BR97-YEJ100M4,BR97-YEJ112M4,BR97-YEJ132M4,BR97-YEJ160M4,BR97-YEJ180M4,BR97-YEJ200M4,BR97-YEJ80M4,BR97-YEJ90M4,BR97-YS100M4,BR97-YS112M4,BR97-YS132M4,BR97-YS160M4,BR97-YS180M4,BR97-YS200M4,BR97-YS80M4,BR97-YS90M4,BR97-YVP100M4,BR97-YVP112M4,BR97-YVP132M4,BR97-YVP160M4,BR97-YVP180M4,BR97-YVP200M4,BR97-YVP80M4,BR97-YVP90M4,BR97-YVPEJ100M4,BR97-YVPEJ112M4,BR97-YVPEJ132M4,BR97-YVPEJ160M4,BR97-YVPEJ180M4,BR97-YVPEJ200M4,BR97-YVPEJ80M4,BR97-YVPEJ90M4,GR97-Y0.55KW,GR97-Y0.75KW,GR97-Y1.1KW,GR97-Y1.5KW,GR97-Y100M4,GR97-Y112M4,GR97-Y11KW,GR97-Y132M4,GR97-Y15KW,GR97-Y160M4,GR97-Y18.5KW,GR97-Y180M4,GR97-Y2.2KW,GR97-Y200M4,GR97-Y22KW,GR97-Y30KW,GR97-Y3KW,GR97-Y4KW,GR97-Y5.5KW,GR97-Y7.5KW,GR97-Y80M4,GR97-Y90M4,GR97-YEJ100M4,GR97-YEJ112M4,GR97-YEJ132M4,GR97-YEJ160M4,GR97-YEJ180M4,GR97-YEJ200M4,GR97-YEJ80M4,GR97-YEJ90M4,GR97-YS100M4,GR97-YS112M4,GR97-YS132M4,GR97-YS160M4,GR97-YS180M4,GR97-YS200M4,GR97-YS80M4,GR97-YS90M4,GR97-YVP100M4,GR97-YVP112M4,GR97-YVP132M4,GR97-YVP160M4,GR97-YVP180M4,GR97-YVP200M4,GR97-YVP80M4,GR97-YVP90M4,GR97-YVPEJ100M4,GR97-YVPEJ112M4,GR97-YVPEJ132M4,GR97-YVPEJ160M4,GR97-YVPEJ180M4,GR97-YVPEJ200M4,GR97-YVPEJ80M4,GR97-YVPEJ90M4,RC97-Y0.55KW,RC97-Y0.75KW,RC97-Y1.1KW,RC97-Y1.5KW,RC97-Y100M4,RC97-Y112M4,RC97-Y11KW,RC97-Y132M4,RC97-Y15KW,RC97-Y160M4,RC97-Y18.5KW,RC97-Y180M4,RC97-Y2.2KW,RC97-Y200M4,RC97-Y22KW,RC97-Y30KW,RC97-Y3KW,RC97-Y4KW,RC97-Y5.5KW,RC97-Y7.5KW,RC97-Y80M4,RC97-Y90M4,RC97-YEJ100M4,RC97-YEJ112M4,RC97-YEJ132M4,RC97-YEJ160M4,RC97-YEJ180M4,RC97-YEJ200M4,RC97-YEJ80M4,RC97-YEJ90M4,RC97-YS100M4,RC97-YS112M4,RC97-YS132M4,RC97-YS160M4,RC97-YS180M4,RC97-YS200M4,RC97-YS80M4,RC97-YS90M4,RC97-YVP100M4,RC97-YVP112M4,RC97-YVP132M4,RC97-YVP160M4,RC97-YVP180M4,RC97-YVP200M4,RC97-YVP80M4,RC97-YVP90M4,RC97-YVPEJ100M4,RC97-YVPEJ112M4,RC97-YVPEJ132M4,RC97-YVPEJ160M4,RC97-YVPEJ180M4,RC97-YVPEJ200M4,RC97-YVPEJ80M4,RC97-YVPEJ90M4,MTD97-Y0.55KW,MTD97-Y0.75KW,MTD97-Y1.1KW,MTD97-Y1.5KW,MTD97-Y100M4,MTD97-Y112M4,MTD97-Y11KW,MTD97-Y132M4,MTD97-Y15KW,MTD97-Y160M4,MTD97-Y18.5KW,MTD97-Y180M4,MTD97-Y2.2KW,MTD97-Y200M4,MTD97-Y22KW,MTD97-Y30KW,MTD97-Y3KW,MTD97-Y4KW,MTD97-Y5.5KW,MTD97-Y7.5KW,MTD97-Y80M4,MTD97-Y90M4,MTD97-YEJ100M4,MTD97-YEJ112M4,MTD97-YEJ132M4,MTD97-YEJ160M4,MTD97-YEJ180M4,MTD97-YEJ200M4,MTD97-YEJ80M4,MTD97-YEJ90M4,MTD97-YS100M4,MTD97-YS112M4,MTD97-YS132M4,MTD97-YS160M4,MTD97-YS180M4,MTD97-YS200M4,MTD97-YS80M4,MTD97-YS90M4,MTD97-YVP100M4,MTD97-YVP112M4,MTD97-YVP132M4,MTD97-YVP160M4,MTD97-YVP180M4,MTD97-YVP200M4,MTD97-YVP80M4,MTD97-YVP90M4,MTD97-YVPEJ100M4,MTD97-YVPEJ112M4,MTD97-YVPEJ132M4,MTD97-YVPEJ160M4,MTD97-YVPEJ180M4,MTD97-YVPEJ200M4,MTD97-YVPEJ80M4,MTD97-YVPEJ90M4,WXR97-WSS0.55KW,WXR97-WSS0.75KW,WXR97-WSS1.1KW,WXR97-WSS1.5KW,WXR97-WSS100M4,WXR97-WSS112M4,WXR97-WSS11KW,WXR97-WSS132M4,WXR97-WSS15KW,WXR97-WSS160M4,WXR97-WSS18.5KW,WXR97-WSS180M4,WXR97-WSS2.2KW,WXR97-WSS200M4,WXR97-WSS22KW,WXR97-WSS30KW,WXR97-WSS3KW,WXR97-WSS4KW,WXR97-WSS5.5KW,WXR97-WSS7.5KW,WXR97-WSS80M4,WXR97-WSS90M4,WXR97-WSSB100M4,WXR97-WSSB112M4,WXR97-WSSB132M4,WXR97-WSSB160M4,WXR97-WSSB180M4,WXR97-WSSB200M4,WXR97-WSSB80M4,WXR97-WSSB90M4,WXR97-WSSVP100M4,WXR97-WSSVP112M4,WXR97-WSSVP132M4,WXR97-WSSVP160M4,WXR97-WSSVP180M4,WXR97-WSSVP200M4,WXR97-WSSVP80M4,WXR97-WSSVP90M4,WXR97-WSSVPB100M4,WXR97-WSSVPB112M4,WXR97-WSSVPB132M4,WXR97-WSSVPB160M4,WXR97-WSSVPB180M4,WXR97-WSSVPB200M4,WXR97-WSSVPB80M4,WXR97-WSSVPB90M4。

R97減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.8x29ft.com/product/list-rxiliejiansuji-cn.html
