RXF67減速機加電機重量：

RXF67減速機加0.12KW電機重量20.5kg,RXF67減速機加0.18KW電機重量21kg,RXF67減速機加0.25KW電機重量25kg,RXF67減速機加0.37KW電機重量25.5kg,RXF67減速機加0.55KW電機重量30kg,RXF67減速機加0.75KW電機重量31kg,RXF67減速機加1.1KW電機重量35kg,RXF67減速機加1.5KW電機重量38kg,RXF67減速機加2.2KW電機重量47kg,RXF67減速機加3KW電機重量50kg,RXF67減速機加4KW電機重量61kg,RXF67減速機加5.5KW電機重量75kg,RXF67減速機加7.5KW電機重量88kg。同軸減速機

RXF67減速機加油量：可加齒輪潤滑油

RXF67減速機M4安裝加1.4L，RXF67減速機M3安裝加1.5L，RXF67減速機M2安裝加0.8L，RXF67減速機M1安裝加0.7L，RXF67減速機M5安裝加1L，RXF67減速機M6安裝加1L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

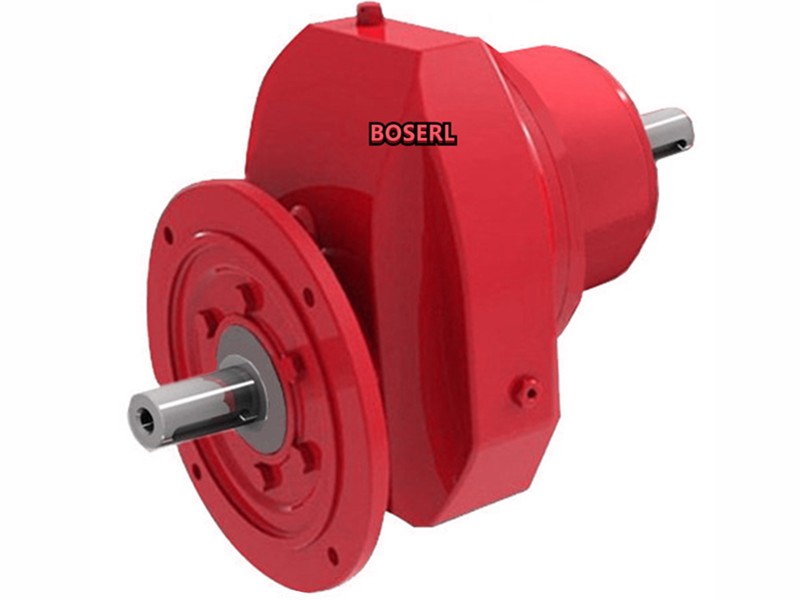

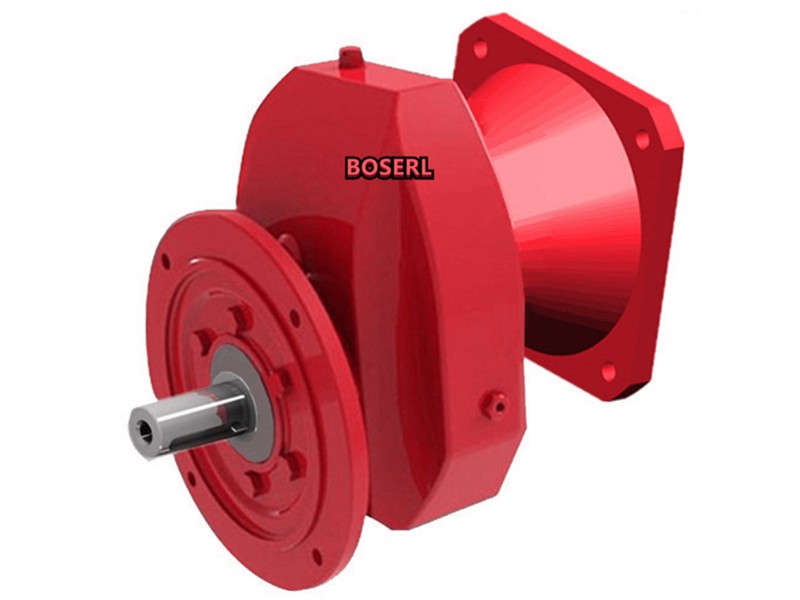

RXF67減速機實物圖：圖一為RXF67減速機不同心立式法蘭安裝，圖二為R67底腳安裝斜齒輪減速機，圖三為RF67法蘭立式安裝斜齒輪減速機，圖四為RX67減速機不同心臥式底腳安裝。

RXF67減速機型號表示方法：

RXF67減速機型號結構RXF67-B3KW-4P-減速比-安裝方式-接線盒位置。齒輪減速機

RXF67減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入加置。

RXF67減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。硬齒面減速機

RXF67減速機參數：

RXF67減速機負載扭矩43Nm,75Nm,80Nm,82Nm,87Nm,100Nm,104Nm,106Nm,114Nm,118Nm,123Nm,126Nm,134Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RXF67減速機電機可加交流、伺服、剎車、變頻、防爆、直流、三相、單相電機RXF67加0.12KW,RXF67加0.18KW,RXF67加0.25KW,RXF67加0.37KW,RXF67加0.55KW,RXF67加0.75KW,RXF67加1.1KW,RXF67加1.5KW,RXF67加2.2KW,RXF67加3KW,RXF67加4KW,RXF67加5.5KW,RXF67加7.5KW。

RXF67減速機輸出轉速231rpm,270rpm,309rpm,326rpm,371rpm,438rpm,484rpm,551rpm,583rpm,686rpm,753rpm,870rpm,1000rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF67減速機減速比1:1.4,1:1.61,1:1.86,1:2.04,1:2.4,1:2.54,1:2.89,1:3.2,1:3.77,1:4.3,1:4.53,1:5.18,1:6.07。

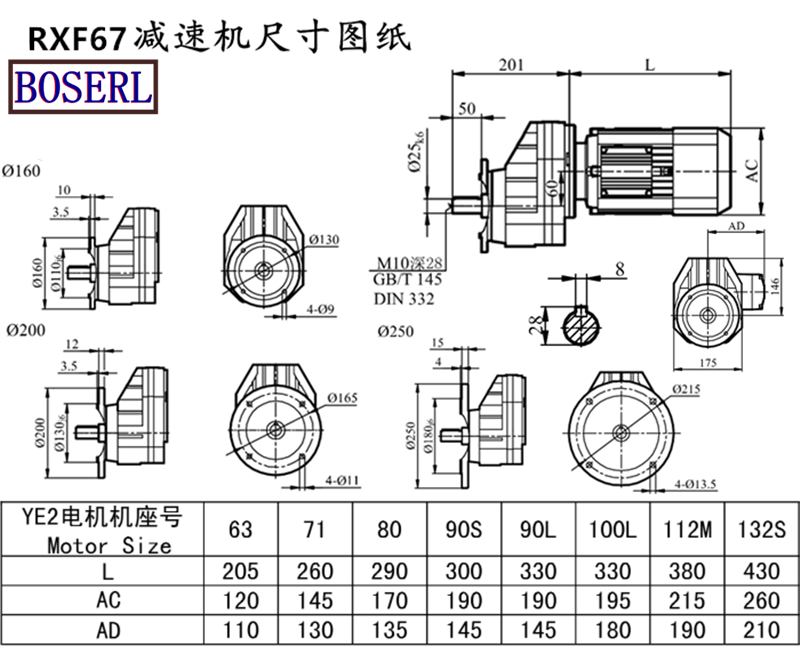

RXF67減速機外觀尺寸：輸出軸直徑Φ25+鍵3（可定做），高226*寬175*長201（帶輸出軸）

RXF67減速機型號：RXF67AQA80,RXF67AQA100,RXF67AQA115,RXF67AQA140,RXF67AQA160,RXF67AQA190,RXF67AQH80,RXF67AQH100,RXF67AQH115,RXF67AQH140,RXF67AQH160,RXF67AQH190,JRTRXF67-Y0.12KW,JRTRXF67-Y0.18KW,JRTRXF67-Y0.25KW,JRTRXF67-Y0.37KW,JRTRXF67-Y0.55KW,JRTRXF67-Y0.75KW,JRTRXF67-Y1.1KW,JRTRXF67-Y1.5KW,JRTRXF67-Y100M4,JRTRXF67-Y112M4,JRTRXF67-Y132M4,JRTRXF67-Y2.2KW,JRTRXF67-Y3KW,JRTRXF67-Y4KW,JRTRXF67-Y5.5KW,JRTRXF67-Y63M4,JRTRXF67-Y7.5KW,JRTRXF67-Y71M4,JRTRXF67-Y80M4,JRTRXF67-Y90M4,JRTRXF67-YEJ100M4,JRTRXF67-YEJ112M4,JRTRXF67-YEJ132M4,JRTRXF67-YEJ63M4,JRTRXF67-YEJ71M4,JRTRXF67-YEJ80M4,JRTRXF67-YEJ90M4,JRTRXF67-YS100M4,JRTRXF67-YS112M4,JRTRXF67-YS132M4,JRTRXF67-YS63M4,JRTRXF67-YS71M4,JRTRXF67-YS80M4,JRTRXF67-YS90M4,JRTRXF67-YVP100M4,JRTRXF67-YVP112M4,JRTRXF67-YVP132M4,JRTRXF67-YVP63M4,JRTRXF67-YVP71M4,JRTRXF67-YVP80M4,JRTRXF67-YVP90M4,JRTRXF67-YVPEJ100M4,JRTRXF67-YVPEJ112M4,JRTRXF67-YVPEJ132M4,JRTRXF67-YVPEJ63M4,JRTRXF67-YVPEJ71M4,JRTRXF67-YVPEJ80M4,JRTRXF67-YVPEJ90M4,EWRXF67-Y0.12KW,EWRXF67-Y0.18KW,EWRXF67-Y0.25KW,EWRXF67-Y0.37KW,EWRXF67-Y0.55KW,EWRXF67-Y0.75KW,EWRXF67-Y1.1KW,EWRXF67-Y1.5KW,EWRXF67-Y100M4,EWRXF67-Y112M4,EWRXF67-Y132M4,EWRXF67-Y2.2KW,EWRXF67-Y3KW,EWRXF67-Y4KW,EWRXF67-Y5.5KW,EWRXF67-Y63M4,EWRXF67-Y7.5KW,EWRXF67-Y71M4,EWRXF67-Y80M4,EWRXF67-Y90M4,EWRXF67-YEJ100M4,EWRXF67-YEJ112M4,EWRXF67-YEJ132M4,EWRXF67-YEJ63M4,EWRXF67-YEJ71M4,EWRXF67-YEJ80M4,EWRXF67-YEJ90M4,EWRXF67-YS100M4,EWRXF67-YS112M4,EWRXF67-YS132M4,EWRXF67-YS63M4,EWRXF67-YS71M4,EWRXF67-YS80M4,EWRXF67-YS90M4,EWRXF67-YVP100M4,EWRXF67-YVP112M4,EWRXF67-YVP132M4,EWRXF67-YVP63M4,EWRXF67-YVP71M4,EWRXF67-YVP80M4,EWRXF67-YVP90M4,EWRXF67-YVPEJ100M4,EWRXF67-YVPEJ112M4,EWRXF67-YVPEJ132M4,EWRXF67-YVPEJ63M4,EWRXF67-YVPEJ71M4,EWRXF67-YVPEJ80M4,EWRXF67-YVPEJ90M4,SLRXF67-Y0.12KW,SLRXF67-Y0.18KW,SLRXF67-Y0.25KW,SLRXF67-Y0.37KW,SLRXF67-Y0.55KW,SLRXF67-Y0.75KW,SLRXF67-Y1.1KW,SLRXF67-Y1.5KW,SLRXF67-Y100M4,SLRXF67-Y112M4,SLRXF67-Y132M4,SLRXF67-Y2.2KW,SLRXF67-Y3KW,SLRXF67-Y4KW,SLRXF67-Y5.5KW,SLRXF67-Y63M4,SLRXF67-Y7.5KW,SLRXF67-Y71M4,SLRXF67-Y80M4,SLRXF67-Y90M4,SLRXF67-YEJ100M4,SLRXF67-YEJ112M4,SLRXF67-YEJ132M4,SLRXF67-YEJ63M4,SLRXF67-YEJ71M4,SLRXF67-YEJ80M4,SLRXF67-YEJ90M4,SLRXF67-YS100M4,SLRXF67-YS112M4,SLRXF67-YS132M4,SLRXF67-YS63M4,SLRXF67-YS71M4,SLRXF67-YS80M4,SLRXF67-YS90M4,SLRXF67-YVP100M4,SLRXF67-YVP112M4,SLRXF67-YVP132M4,SLRXF67-YVP63M4,SLRXF67-YVP71M4,SLRXF67-YVP80M4,SLRXF67-YVP90M4,SLRXF67-YVPEJ100M4,SLRXF67-YVPEJ112M4,SLRXF67-YVPEJ132M4,SLRXF67-YVPEJ63M4,SLRXF67-YVPEJ71M4,SLRXF67-YVPEJ80M4,SLRXF67-YVPEJ90M4,DSZRXF67-Y0.12KW,DSZRXF67-Y0.18KW,DSZRXF67-Y0.25KW,DSZRXF67-Y0.37KW,DSZRXF67-Y0.55KW,DSZRXF67-Y0.75KW,DSZRXF67-Y1.1KW,DSZRXF67-Y1.5KW,DSZRXF67-Y100M4,DSZRXF67-Y112M4,DSZRXF67-Y132M4,DSZRXF67-Y2.2KW,DSZRXF67-Y3KW,DSZRXF67-Y4KW,DSZRXF67-Y5.5KW,DSZRXF67-Y63M4,DSZRXF67-Y7.5KW,DSZRXF67-Y71M4,DSZRXF67-Y80M4,DSZRXF67-Y90M4,DSZRXF67-YEJ100M4,DSZRXF67-YEJ112M4,DSZRXF67-YEJ132M4,DSZRXF67-YEJ63M4,DSZRXF67-YEJ71M4,DSZRXF67-YEJ80M4,DSZRXF67-YEJ90M4,DSZRXF67-YS100M4,DSZRXF67-YS112M4,DSZRXF67-YS132M4,DSZRXF67-YS63M4,DSZRXF67-YS71M4,DSZRXF67-YS80M4,DSZRXF67-YS90M4,DSZRXF67-YVP100M4,DSZRXF67-YVP112M4,DSZRXF67-YVP132M4,DSZRXF67-YVP63M4,DSZRXF67-YVP71M4,DSZRXF67-YVP80M4,DSZRXF67-YVP90M4,DSZRXF67-YVPEJ100M4,DSZRXF67-YVPEJ112M4,DSZRXF67-YVPEJ132M4,DSZRXF67-YVPEJ63M4,DSZRXF67-YVPEJ71M4,DSZRXF67-YVPEJ80M4,DSZRXF67-YVPEJ90M4,BRXF67-Y0.12KW,BRXF67-Y0.18KW,BRXF67-Y0.25KW,BRXF67-Y0.37KW,BRXF67-Y0.55KW,BRXF67-Y0.75KW,BRXF67-Y1.1KW,BRXF67-Y1.5KW,BRXF67-Y100M4,BRXF67-Y112M4,BRXF67-Y132M4,BRXF67-Y2.2KW,BRXF67-Y3KW,BRXF67-Y4KW,BRXF67-Y5.5KW,BRXF67-Y63M4,BRXF67-Y7.5KW,BRXF67-Y71M4,BRXF67-Y80M4,BRXF67-Y90M4,BRXF67-YEJ100M4,BRXF67-YEJ112M4,BRXF67-YEJ132M4,BRXF67-YEJ63M4,BRXF67-YEJ71M4,BRXF67-YEJ80M4,BRXF67-YEJ90M4,BRXF67-YS100M4,BRXF67-YS112M4,BRXF67-YS132M4,BRXF67-YS63M4,BRXF67-YS71M4,BRXF67-YS80M4,BRXF67-YS90M4,BRXF67-YVP100M4,BRXF67-YVP112M4,BRXF67-YVP132M4,BRXF67-YVP63M4,BRXF67-YVP71M4,BRXF67-YVP80M4,BRXF67-YVP90M4,BRXF67-YVPEJ100M4,BRXF67-YVPEJ112M4,BRXF67-YVPEJ132M4,BRXF67-YVPEJ63M4,BRXF67-YVPEJ71M4,BRXF67-YVPEJ80M4,BRXF67-YVPEJ90M4,GRXF67-Y0.12KW,GRXF67-Y0.18KW,GRXF67-Y0.25KW,GRXF67-Y0.37KW,GRXF67-Y0.55KW,GRXF67-Y0.75KW,GRXF67-Y1.1KW,GRXF67-Y1.5KW,GRXF67-Y100M4,GRXF67-Y112M4,GRXF67-Y132M4,GRXF67-Y2.2KW,GRXF67-Y3KW,GRXF67-Y4KW,GRXF67-Y5.5KW,GRXF67-Y63M4,GRXF67-Y7.5KW,GRXF67-Y71M4,GRXF67-Y80M4,GRXF67-Y90M4,GRXF67-YEJ100M4,GRXF67-YEJ112M4,GRXF67-YEJ132M4,GRXF67-YEJ63M4,GRXF67-YEJ71M4,GRXF67-YEJ80M4,GRXF67-YEJ90M4,GRXF67-YS100M4,GRXF67-YS112M4,GRXF67-YS132M4,GRXF67-YS63M4,GRXF67-YS71M4,GRXF67-YS80M4,GRXF67-YS90M4,GRXF67-YVP100M4,GRXF67-YVP112M4,GRXF67-YVP132M4,GRXF67-YVP63M4,GRXF67-YVP71M4,GRXF67-YVP80M4,GRXF67-YVP90M4,GRXF67-YVPEJ100M4,GRXF67-YVPEJ112M4,GRXF67-YVPEJ132M4,GRXF67-YVPEJ63M4,GRXF67-YVPEJ71M4,GRXF67-YVPEJ80M4,GRXF67-YVPEJ90M4,RCXF67-Y0.12KW,RCXF67-Y0.18KW,RCXF67-Y0.25KW,RCXF67-Y0.37KW,RCXF67-Y0.55KW,RCXF67-Y0.75KW,RCXF67-Y1.1KW,RCXF67-Y1.5KW,RCXF67-Y100M4,RCXF67-Y112M4,RCXF67-Y132M4,RCXF67-Y2.2KW,RCXF67-Y3KW,RCXF67-Y4KW,RCXF67-Y5.5KW,RCXF67-Y63M4,RCXF67-Y7.5KW,RCXF67-Y71M4,RCXF67-Y80M4,RCXF67-Y90M4,RCXF67-YEJ100M4,RCXF67-YEJ112M4,RCXF67-YEJ132M4,RCXF67-YEJ63M4,RCXF67-YEJ71M4,RCXF67-YEJ80M4,RCXF67-YEJ90M4,RCXF67-YS100M4,RCXF67-YS112M4,RCXF67-YS132M4,RCXF67-YS63M4,RCXF67-YS71M4,RCXF67-YS80M4,RCXF67-YS90M4,RCXF67-YVP100M4,RCXF67-YVP112M4,RCXF67-YVP132M4,RCXF67-YVP63M4,RCXF67-YVP71M4,RCXF67-YVP80M4,RCXF67-YVP90M4,RCXF67-YVPEJ100M4,RCXF67-YVPEJ112M4,RCXF67-YVPEJ132M4,RCXF67-YVPEJ63M4,RCXF67-YVPEJ71M4,RCXF67-YVPEJ80M4,RCXF67-YVPEJ90M4,MTDXF67-Y0.12KW,MTDXF67-Y0.18KW,MTDXF67-Y0.25KW,MTDXF67-Y0.37KW,MTDXF67-Y0.55KW,MTDXF67-Y0.75KW,MTDXF67-Y1.1KW,MTDXF67-Y1.5KW,MTDXF67-Y100M4,MTDXF67-Y112M4,MTDXF67-Y132M4,MTDXF67-Y2.2KW,MTDXF67-Y3KW,MTDXF67-Y4KW,MTDXF67-Y5.5KW,MTDXF67-Y63M4,MTDXF67-Y7.5KW,MTDXF67-Y71M4,MTDXF67-Y80M4,MTDXF67-Y90M4,MTDXF67-YEJ100M4,MTDXF67-YEJ112M4,MTDXF67-YEJ132M4,MTDXF67-YEJ63M4,MTDXF67-YEJ71M4,MTDXF67-YEJ80M4,MTDXF67-YEJ90M4,MTDXF67-YS100M4,MTDXF67-YS112M4,MTDXF67-YS132M4,MTDXF67-YS63M4,MTDXF67-YS71M4,MTDXF67-YS80M4,MTDXF67-YS90M4,MTDXF67-YVP100M4,MTDXF67-YVP112M4,MTDXF67-YVP132M4,MTDXF67-YVP63M4,MTDXF67-YVP71M4,MTDXF67-YVP80M4,MTDXF67-YVP90M4,MTDXF67-YVPEJ100M4,MTDXF67-YVPEJ112M4,MTDXF67-YVPEJ132M4,MTDXF67-YVPEJ63M4,MTDXF67-YVPEJ71M4,MTDXF67-YVPEJ80M4,MTDXF67-YVPEJ90M4,WXRXF67-WSS0.12KW,WXRXF67-WSS0.18KW,WXRXF67-WSS0.25KW,WXRXF67-WSS0.37KW,WXRXF67-WSS0.55KW,WXRXF67-WSS0.75KW,WXRXF67-WSS1.1KW,WXRXF67-WSS1.5KW,WXRXF67-WSS100M4,WXRXF67-WSS112M4,WXRXF67-WSS132M4,WXRXF67-WSS2.2KW,WXRXF67-WSS3KW,WXRXF67-WSS4KW,WXRXF67-WSS5.5KW,WXRXF67-WSS63M4,WXRXF67-WSS7.5KW,WXRXF67-WSS71M4,WXRXF67-WSS80M4,WXRXF67-WSS90M4,WXRXF67-WSSB100M4,WXRXF67-WSSB112M4,WXRXF67-WSSB132M4,WXRXF67-WSSB63M4,WXRXF67-WSSB71M4,WXRXF67-WSSB80M4,WXRXF67-WSSB90M4,WXRXF67-WSSVP100M4,WXRXF67-WSSVP112M4,WXRXF67-WSSVP132M4,WXRXF67-WSSVP63M4,WXRXF67-WSSVP71M4,WXRXF67-WSSVP80M4,WXRXF67-WSSVP90M4,WXRXF67-WSSVPB100M4,WXRXF67-WSSVPB112M4,WXRXF67-WSSVPB132M4,WXRXF67-WSSVPB63M4,WXRXF67-WSSVPB71M4,WXRXF67-WSSVPB80M4,WXRXF67-WSSVPB90M4。

RXF67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.8x29ft.com/product/list-rxfxiliejiansuji-cn.html
